Emergency Flash Utility (EFU) via TTL cable

info

Connect via TTL cable to [MMX UART on the quadlock](/MHI2 MHI2Q Harman Aisin/Shell access via telnet and UART/Connecting TTL adapter to UART on quadlock/). Press and hold shift+e while powering on the unit. This will run RED EFU (Emergency Flash Utility). Unit must receive the key presses before you see "Press to run Emergency Flash Utility."

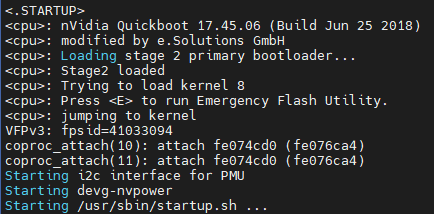

  1. Power on the unit via quadlock and keep pressing shift+e until you see something like:

  1. As a confirmation that shift+e worked, you should see:
[efu.Main] INFO: Emergency mode forced by user.
[efu.Main] INFO: Starting emergency flash utility
[efu.EmergencyFlashUtility] INFO: Starting EFU Version 2.5.0
[efu.EmergencyFlashUtility] INFO: Searching for internal update info.
[efu.EmergencyFlashUtility] INFO: Use external update info.
[efu.EmergencyFlashUtility] INFO: Please insert update media with update info or reboot.

If IOC watchdog is active you will see a hint telling you how to stop MMX from the rebooting:

PDK: QC_CRM_BUILD_/local/mnt/workspace/CRMBuilds/QXA.QA.1.1-00010_7 (Built 2018/01/30-21:45:04-PST)ERROR DisplayControl_SanitizeInput[434] strncmp(hdr=!, SPLASH_METADATA_HEADER=SPLASH!) FAILED, HDR_MAX_BYTES=8
ERROR DisplayControl_StartSplash[767] DisplayControl_SanitizeInput() FAILED
ERROR DisplayControl_SplashInit[898] DisplayControl_StartSplash() FAILED
DisplayControl_SplashInit() FAILED
PDK: QC_CRM_BUILD_/local/mnt/workspace/CRMBuilds/QXA.QA.1.1-00010_7 (Built 2018/01/30-21:45:04-PST)
activating ringbuffer @ 0x96400000 size 16352
Qualcomm: fpsid=51406f10
coproc_attach(10): attach fe099cd0 (fe09bca4)
coproc_attach(11): attach fe099cd0 (fe09bca4)
rstp: rstp: Version 1.7.5
rstp: rm count: 1
rstp: [00] /dev/rstp/pwrmanlegacy_datanc, type DATANC, channels: 0xfe,
rstp:  using /dev/ser2 with 115200 baud
Creating a 100 MB ramdisk ramdisk mounted at /ramdisk
Path=0 -
 target=0 lun=0     Direct-Access(0) - ram  Rev:
31
31
Loading EHCI driver for USB1
start_qcore_eifs.sh: Proper BCT detected
Loading EHCI driver for USB3
qc8064_eifs.build::start_sdcard.sh: waitfor  /dev/nvsku/project 60000...
    0.01s real     0.00s user     0.00s system
qc8064_eifs.build::start_sdcard.sh: REVISION is 402
C sample or newer - change SDCard slots
qc8064_eifs.build::start_sdcard.sh done.
start CDROM driver...
/proc/boot/start_qcore_eifs.sh[347]: /sbin/devb-eide-mmx: cannot execute - No such file or directory
start_qcore_eifs.sh: start autorunner...
start_qcore_eifs.sh: autorunner started
Unable to start "echo" (2)
Unable to start "echo" (2)
Unable to start "echo" (2)
Unable to start "echo" (2)
Unable to start "echo" (2)
[efu.Main] INFO: Emergency Flash Utility (Production Build)
[efu.Main] INFO: Production Build
[efu.Main] INFO: Copyright (c) 2011 - 2015 e.solutions GmbH. All rights reserved.


[efu.Main] INFO: Starting graphical user interface
[efu.Main] INFO: Establishing IOC communication
rstp: register queue [0] 0xFE

[efu.Main] INFO: Starting monitor
[efu.Main] INFO: Read project identifier: 45323.
[efu.Main] INFO: Detected board revision 402.
screen create context OK
screen_post_thread is created tid:004
screen_draw_thread is created tid:005
[efu.Main] INFO: [EFU] screen size [1024 x 480]
[efu.IOC] INFO: toggleMmxIocGpio: toggle executed
login: [efu.Main] INFO: Powerstate: 0xe
[efu.Main] INFO: Warning: System is not in SWDL state.


############
System will reset automatically
enter 'donotreset' to prevent reset
############


[efu.Main] INFO: Emergency mode forced by user.
[efu.Main] INFO: Starting emergency flash utility
[efu.EmergencyFlashUtility] INFO: Starting EFU Version 2.5.0


login: root
Password:
  1. Login, enter donotreset and restore damaged partitions [manually](/MHI2 MHI2Q Harman Aisin/Recovery/RCC/Manual Firmware Restore/)
