Connecting TTL adapter to UART on quadlock

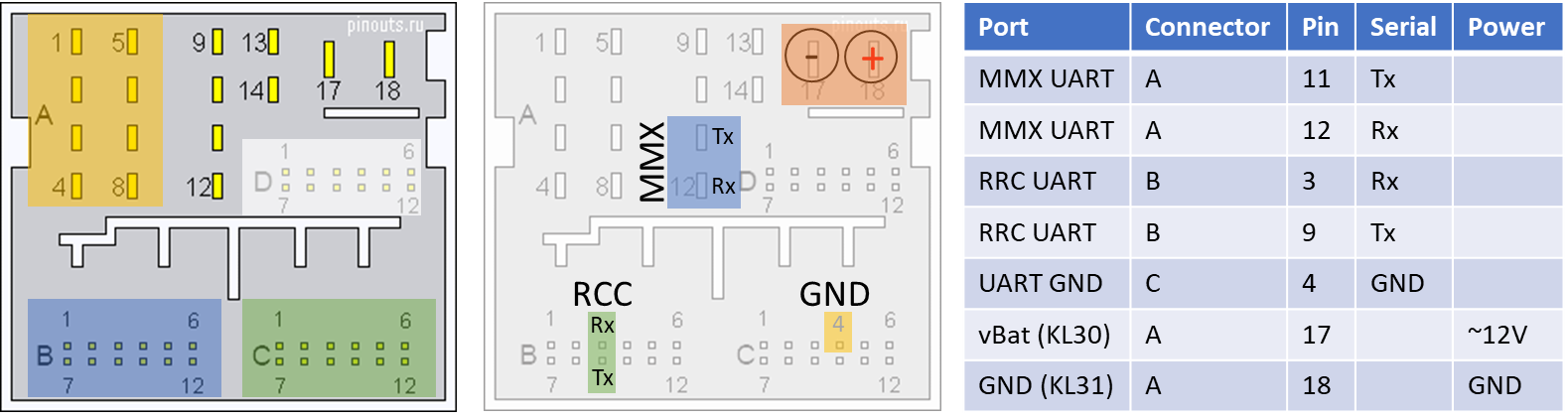

Quadlock pinout for connection to UART of RCC and MMX

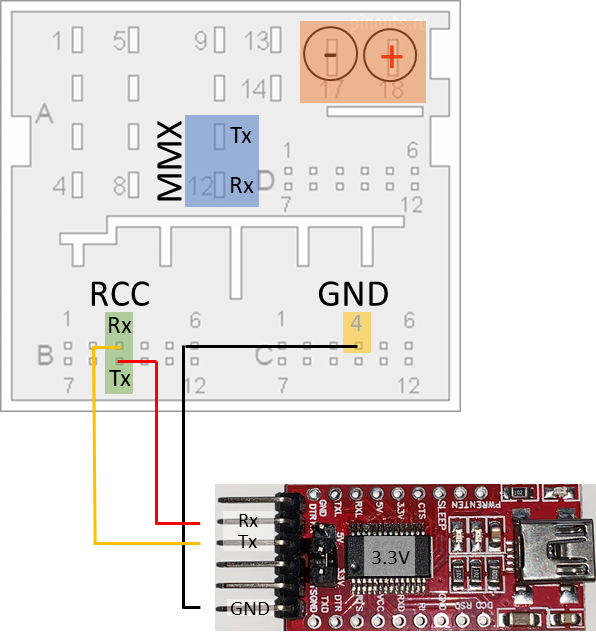

RCC UART connection:

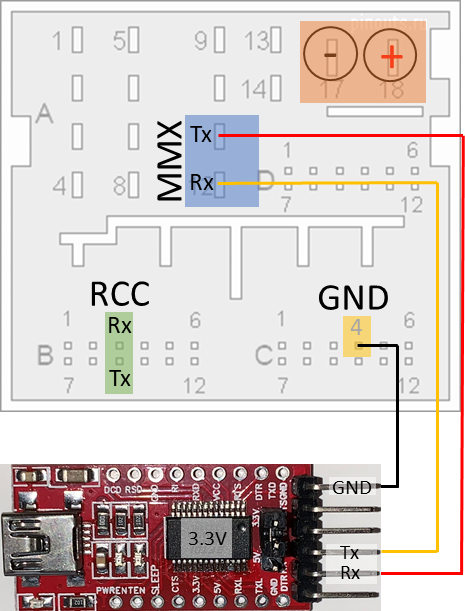

MMX UART connection:

Connect to RCC or MMX UART with putty

:::info Open Windows "Device Manager", open COM&LPT ports and find USB COM port number. Replace COM1 with correct port number from device manager.

:::

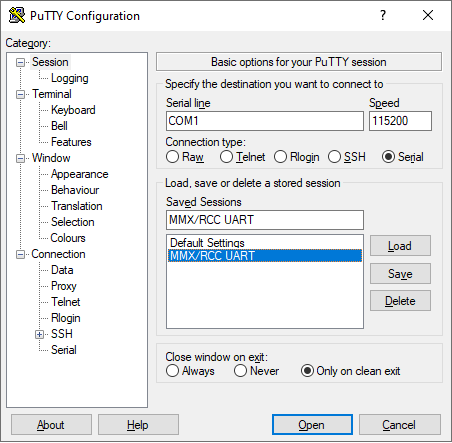

MMX/RCC UART settings

:::tip Also check section about bench setup

:::
