Hardware and recovery via EFU

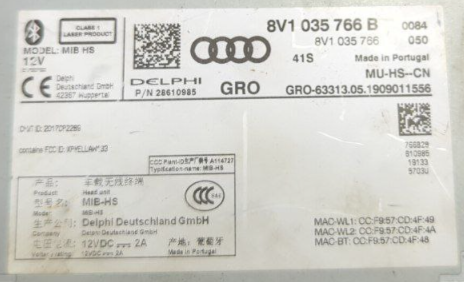

Label of chinese Audi MMI with train MHS2_CN_AU_P1615

:::info GOOD TO KNOW: Trains MHS2_US_AU_P01*, MHS2_US_AU_K01*, MHS2_EU_AU_P01*, MHS2_EU_AU_K01*, MHS2_CN_AU_P08*, MHS2_CN_AU_K08*, MHS2_CN_AU_P12*, MHS2_CN_AU_K12*, MHS2_CN_AU_P16*, MHS2_CN_AU_K16* do not support Radio Logo and Gracenote2 DBs

:::

MMX chip located on top of the board. 64Mb NOR is mounted at /net/mmx/fs/dev/fs0

and partitioned like:

/dev/fs0p1                  1.8M      1.1M      728K      63%  /mnt/system
/dev/fs0p2                  7.8M      1.1M      6.7M      15%  /mnt/persist

NAND size is 15Gb

/dev/mnand0 15G 15G 0 100%

partitioned like:

/dev/mnand0t177             972M      694M      278M      72%  /mnt/app/
/dev/mnand0t178            1024M      113M      911M      12%  /mnt/boardbook/
/dev/mnand0t179             3.0G      102M      2.9G       4%  /mnt/ota/
/dev/mnand0t178.1           2.4G      2.0G      505M      81%  /mnt/speech/
/dev/mnand0t178.2            64M      2.7M       61M       5%  /mnt/gracenotedb
/dev/mnand0t178.3           256M      4.2M      252M       2%  /mnt/mmebackup/
/dev/mnand0t178.4          1024M       47M      977M       5%  /mnt/icab/
/dev/mnand0t178.5           1.4G       28M      1.4G       2%  /mnt/adb/
/dev/mnand0t178.6          1024M       46M      978M       5%  /mnt/gecache/
/dev/mnand0t178.7          1024M       20M     1004M       2%  /mnt/ols/
/dev/mnand0t178.8           1.6G       58M      1.6G       4%  /mnt/navdb/
/dev/mnand0t178.9            64M      3.2M       61M       6%  /mnt/media/

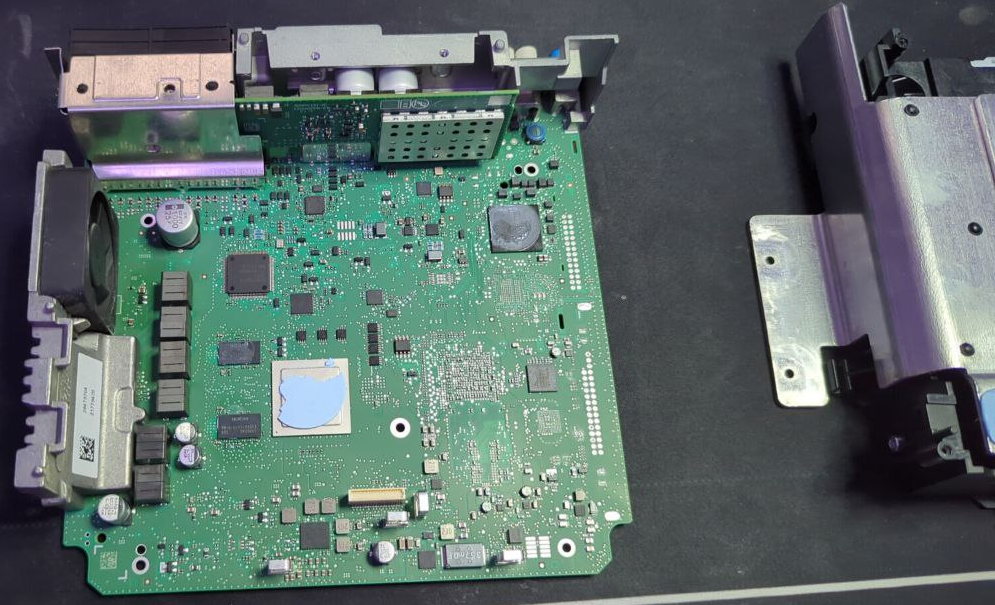

Top of the MMX board: nVidia_Tegra2(T30), MMX NOR 64Mb or 128Mb, NAND 15Gb

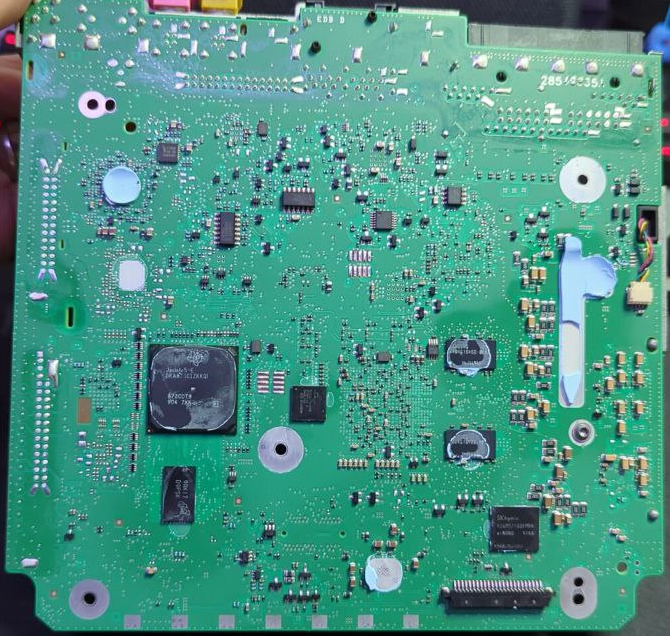

RCC (Jacinto 5e) on the bottom. 64Mb (EU units) or 128Mb (US units) NOR is mounted at /net/rcc/fs/dev/fs0:

To start EFU (Emergency Flash Utility), connect to MMX via quadlock, press and hold E on the keyboard and power on the unit via quadlock:

 <.STARTUP>
<cpu>: nVidia Quickboot 17.54 (Build Feb 19 2018)
<cpu>: modified by e.Solutions GmbH
<cpu>: Loading stage 2 primary bootloader...
<cpu>: Stage2 loaded
<cpu>: Trying to load kernel 8
<cpu>: Press <E> to run Emergency Flash Utility.
<cpu>: Error reading status register (0x2)
<cpu>: jumping to kernel
VFPv3: fpsid=41033094
coproc_attach(10): attach fe074cd0 (fe076ca4)
coproc_attach(11): attach fe074cd0 (fe076ca4)
Starting i2c interface for PMU
Starting devg-nvpower
Starting /usr/sbin/startup.sh ...
[OOC.Main] INFO: Version 2.2.1-RELEASE
[OOC.Main] INFO: ESO common libs version 4.5.2
[OOC.TimerGroup] INFO: Timer group thread started
[OOC.TimerGroup] INFO: Timer thread started
[ResMgrI2C.I2cIoc] INFO: I2C slave thread started
[OOC.SdisWlan] INFO: fsm:sdis_wlan_start_thread

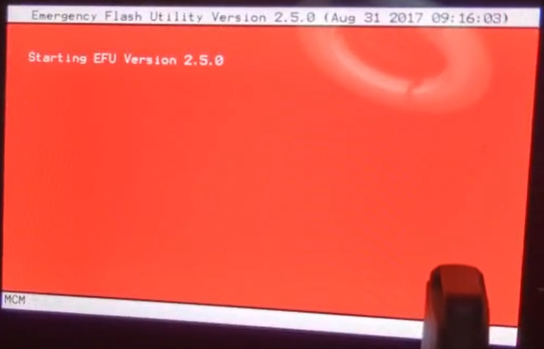

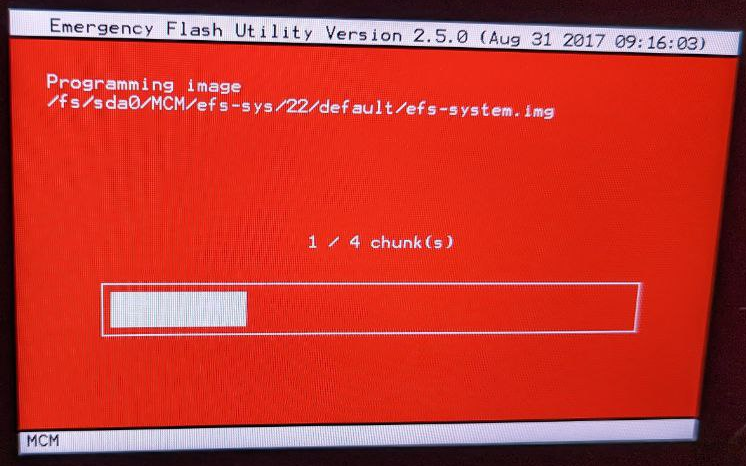

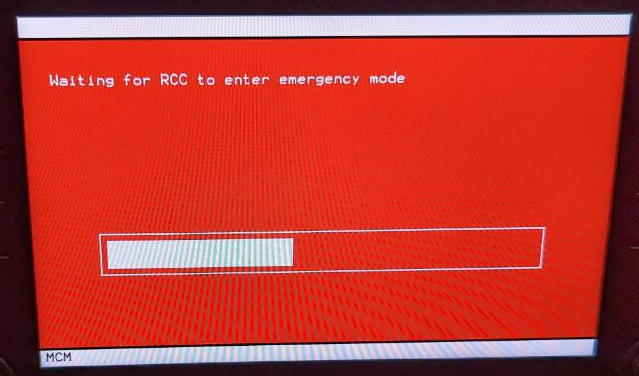

Then EFU starts:

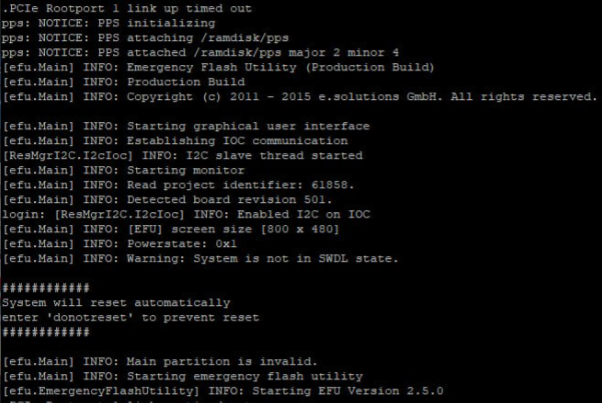

and in the log you may see something like:

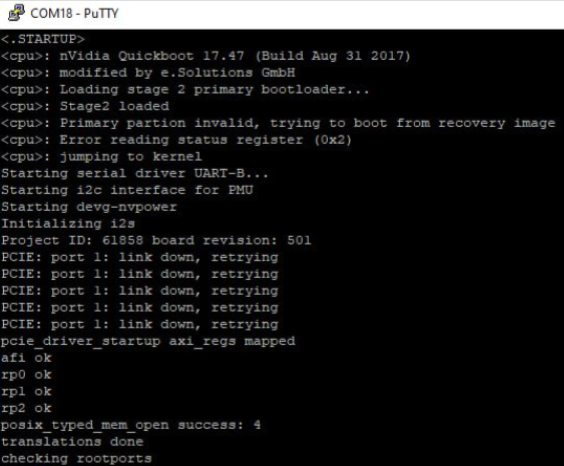

GOOD TO KNOW: When primary partition is corrupted then EFU starts directly:

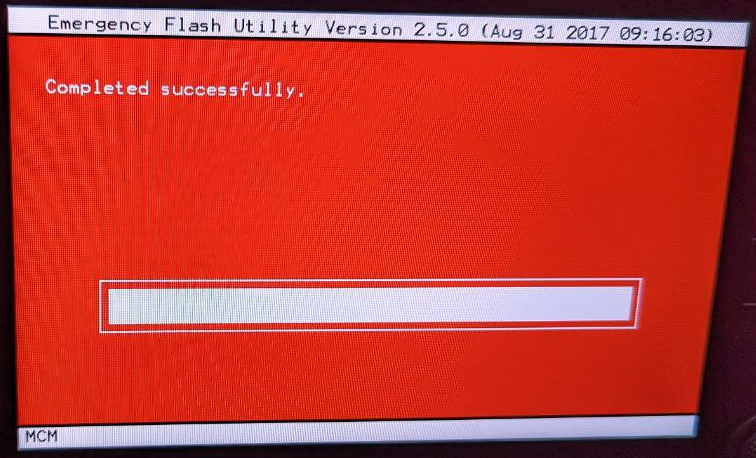

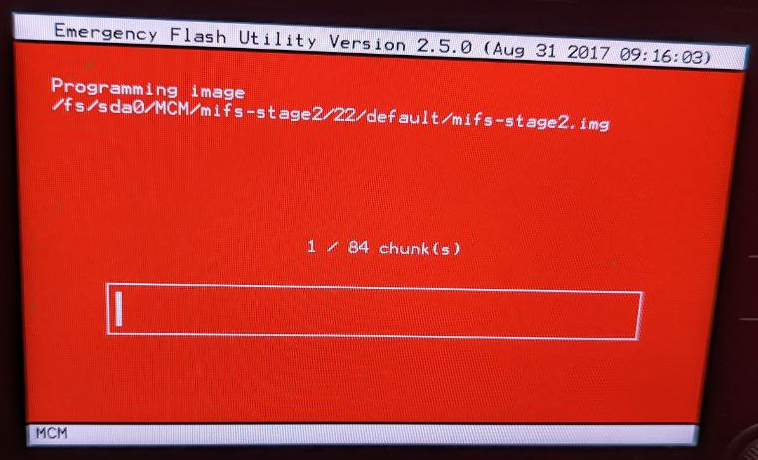

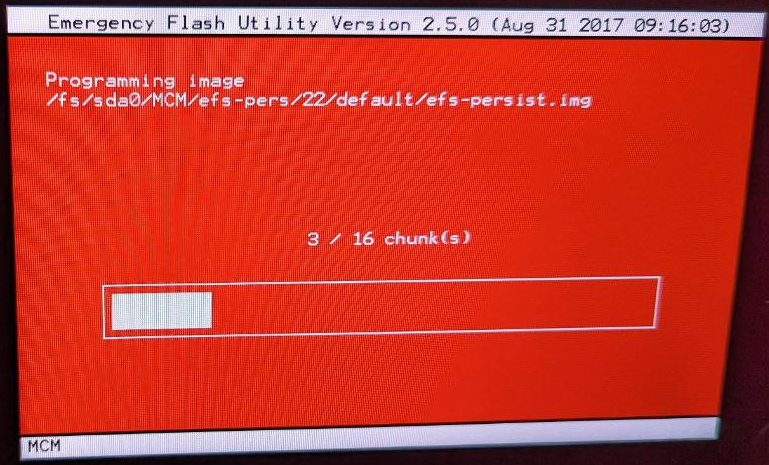

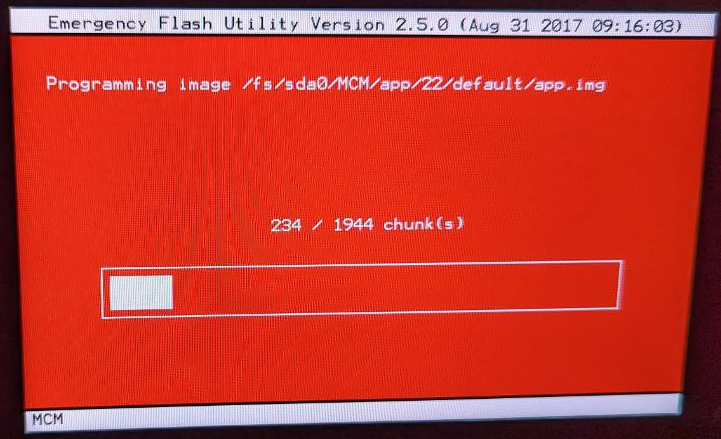

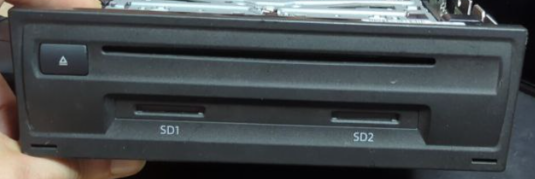

Insert stock MHS2 firmware on FAT32 formatted SD card into SD1 slot and EFU will automatically start flashing.

:::info IMPORTANT! To prevent automatic shutdown of the unit, press DVD eject button. It will stop watchdog timer.

:::
