Displaymanager - dmdt
How are the display outputs on MHI2 units handled?
Some 1st findings
/eso/bin/apps/displaymanager
use does not provide any output

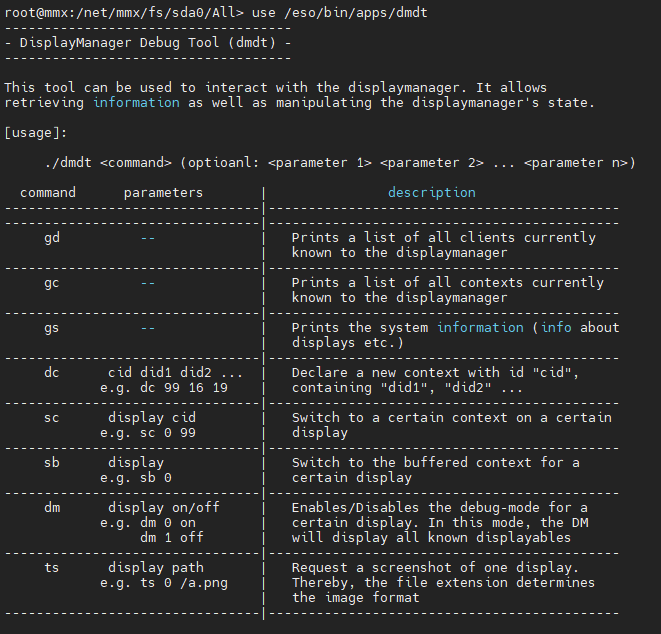

/eso/bin/apps/dmdt
Debug Tool for DisplayManager

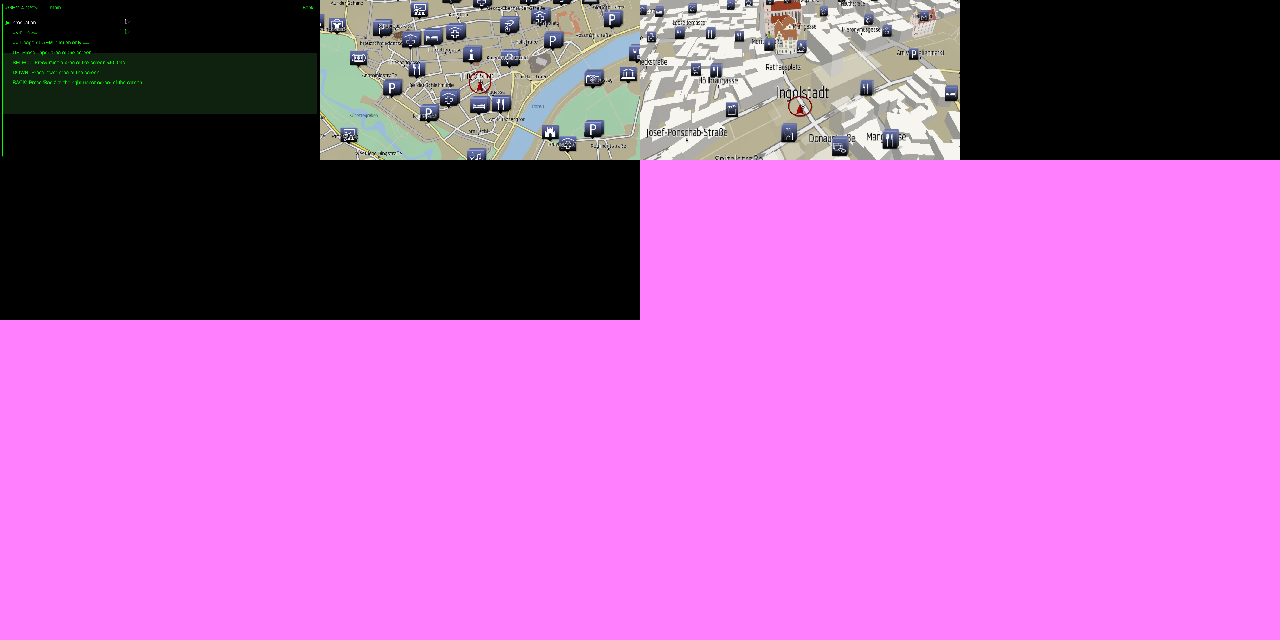

dm 0 on

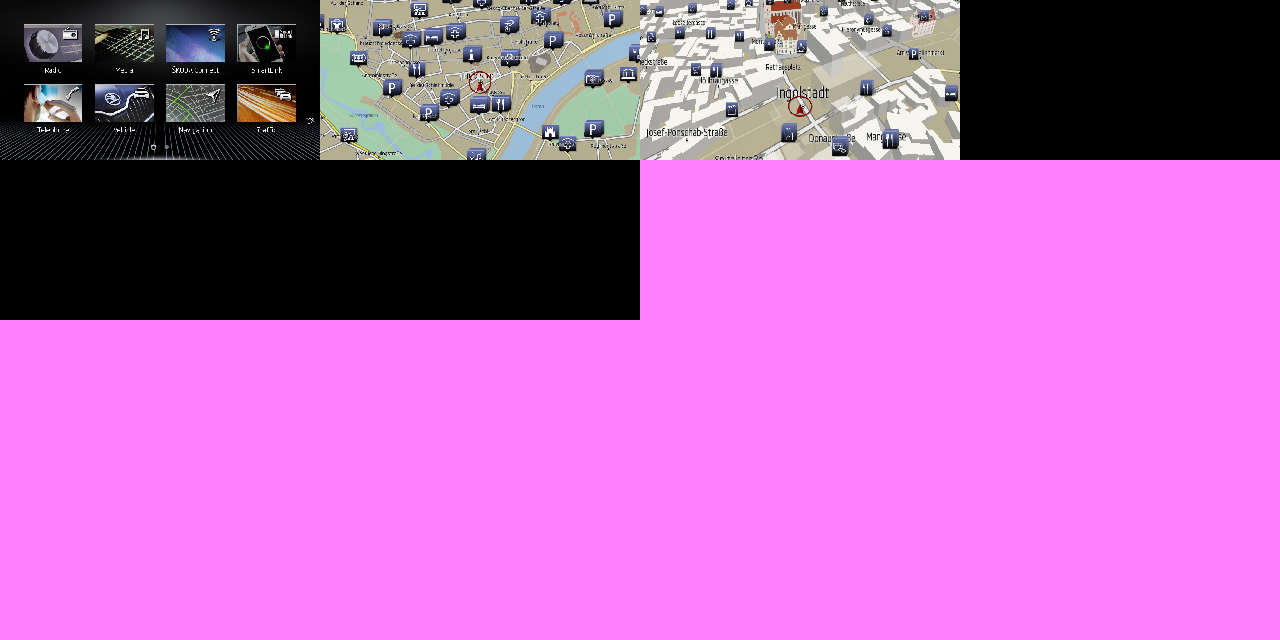

upper left corner image is the main screen, also changes with pressing of buttons on unit
dmdt dm 0 off
switches back to normal menu display

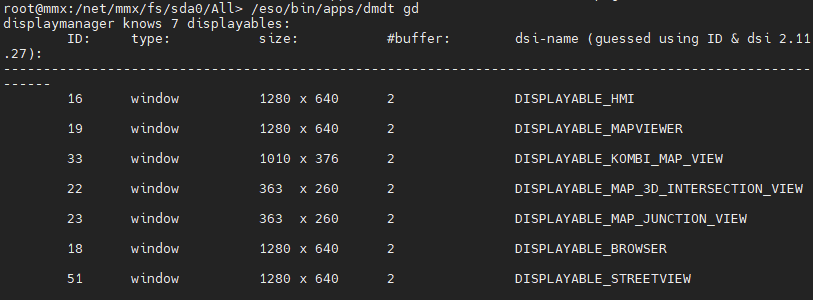

dmdt gd
List of available outputs and their resolutions
dmdt gc
root@mmx:/net/mmx/fs/sda0/All> /eso/bin/apps/dmdt gc
displaymanager knows 32 contexts:
ID: flags:
-----------------------------------
-8 | 1 | NONE
-----------------------------------
-123 (--)
-1 | 1 | NONE
-----------------------------------
-666 (--)
-2 | 1 | NONE
-----------------------------------
17 (DISPLAYABLE_REAR_VIEW_CAM)
-3 | 7 | PERSISTENT | REDRAW
-----------------------------------
51 (DISPLAYABLE_STREETVIEW)
18 (DISPLAYABLE_BROWSER)
23 (DISPLAYABLE_MAP_JUNCTION_VIEW)
22 (DISPLAYABLE_MAP_3D_INTERSECTION_VIEW)
33 (DISPLAYABLE_KOMBI_MAP_VIEW)
19 (DISPLAYABLE_MAPVIEWER)
16 (DISPLAYABLE_HMI)
-4 | 1 | PERSISTENT
-----------------------------------
47 (DISPLAYABLE_FBAS_1)
-5 | 1 | PERSISTENT
-----------------------------------
48 (DISPLAYABLE_FBAS_2)
-6 | 1 | PERSISTENT
-----------------------------------
49 (DISPLAYABLE_FBAS_3)
-10 | 1 | PERSISTENT
-----------------------------------
-125 (--)
-7 | 1 | PERSISTENT
-----------------------------------
-124 (--)
-9 | 1 | PERSISTENT | REDRAW | RELAYOUT
-----------------------------------
-2 (--)
0 | 1 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
1 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
19 (DISPLAYABLE_MAPVIEWER)
2 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
27 (DISPLAYABLE_AMI)
3 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
17 (DISPLAYABLE_REAR_VIEW_CAM)
5 | 3 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
50 (DISPLAYABLE_MAP_IN_MAP)
19 (DISPLAYABLE_MAPVIEWER)
6 | 3 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
22 (DISPLAYABLE_MAP_3D_INTERSECTION_VIEW)
19 (DISPLAYABLE_MAPVIEWER)
7 | 3 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
23 (DISPLAYABLE_MAP_JUNCTION_VIEW)
19 (DISPLAYABLE_MAPVIEWER)
8 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
43 (DISPLAYABLE_DIGITAL_VIDEOPLAYER_1)
9 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
18 (DISPLAYABLE_BROWSER)
17 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
56 (DISPLAYABLE_MIRRORLINK)
18 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
51 (DISPLAYABLE_STREETVIEW)
19 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
39 (DISPLAYABLE_GOOGLE_EARTH)
20 | 3 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
50 (DISPLAYABLE_MAP_IN_MAP)
39 (DISPLAYABLE_GOOGLE_EARTH)
21 | 3 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
22 (DISPLAYABLE_MAP_3D_INTERSECTION_VIEW)
39 (DISPLAYABLE_GOOGLE_EARTH)
22 | 3 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
23 (DISPLAYABLE_MAP_JUNCTION_VIEW)
39 (DISPLAYABLE_GOOGLE_EARTH)
12 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
26 (DISPLAYABLE_TV_TUNER)
13 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
31 (DISPLAYABLE_TV_VIDEOTEXT)
14 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
29 (DISPLAYABLE_TV_AUX1)
70 | 1 | NONE
-----------------------------------
33 (DISPLAYABLE_KOMBI_MAP_VIEW)
71 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
59 (DISPLAYABLE_EXTERNAL_SMARTPHONE)
26 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
23 (DISPLAYABLE_MAP_JUNCTION_VIEW)
27 | 2 | NONE
-----------------------------------
16 (DISPLAYABLE_HMI)
22 (DISPLAYABLE_MAP_3D_INTERSECTION_VIEW)
dmdt gs

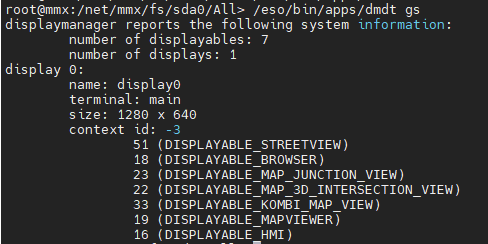

With just internal MIB main screen (G13 9.2''):
with MIB main screen (G13 9.2'') and VC connected:
root@mmx:/mnt/app/root> export LD_LIBRARY_PATH=$LD_LIBRARY_PATH:/mnt/app/armle/usr/lib:/eso/lib:/mnt/app/root/lib-target:/eso/production
root@mmx:/mnt/app/root> /eso/bin/apps/dmdt gs
displaymanager reports the following system information:
number of displayables: 7
number of displays: 2
display 0:
name: display0
terminal: main
size: 1280 x 640
context id: 1
16 (DISPLAYABLE_HMI)
19 (DISPLAYABLE_MAPVIEWER)
display 1:
name: <error>
terminal: <error>
size: 0 x 0
context id: 70
33 (DISPLAYABLE_KOMBI_MAP_VIEW)
VC is listed as display 1 with no seize (0x0)

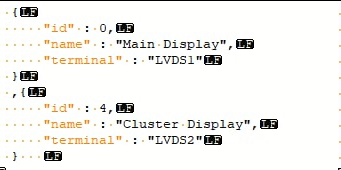

However, test have shown, that VC seems to be also refereced by display 4
which allows for certain manipulation based on the commands below.
dmdt dc
more testing needed
dmdt sc
| Command | screen |
|---|---|
| /eso/bin/apps/dmdt sc 0 70 | VC map |
| /eso/bin/apps/dmdt sc 0 71 | Smartphone |
| /eso/bin/apps/dmdt sc 4 -9 | mirror screenshow to VC |
Other combinations did not work for me - either nothing happens or screen goes black
If stuck on black/purple screen, it can be recovered with dmdt sb 0

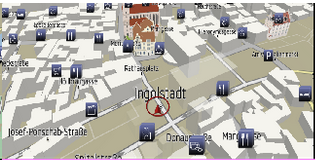

VC map output
3rd screen from the upper left is the VC map view
Take screenshots via console command
Screenshot from main screen on Unit:
/eso/bin/apps/dmdt ts 0 /net/mmx/fs/sda0/b.png

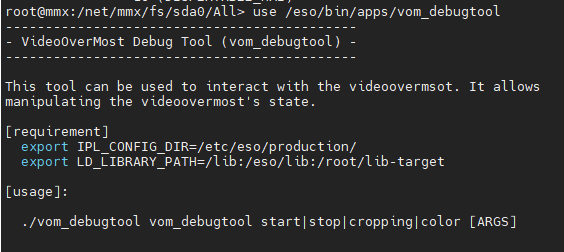

vom_debugtool
/eso/bin/apps/vom_debugtool
Functions have to be tested.
There are some more ascii strings to explain start command in binary

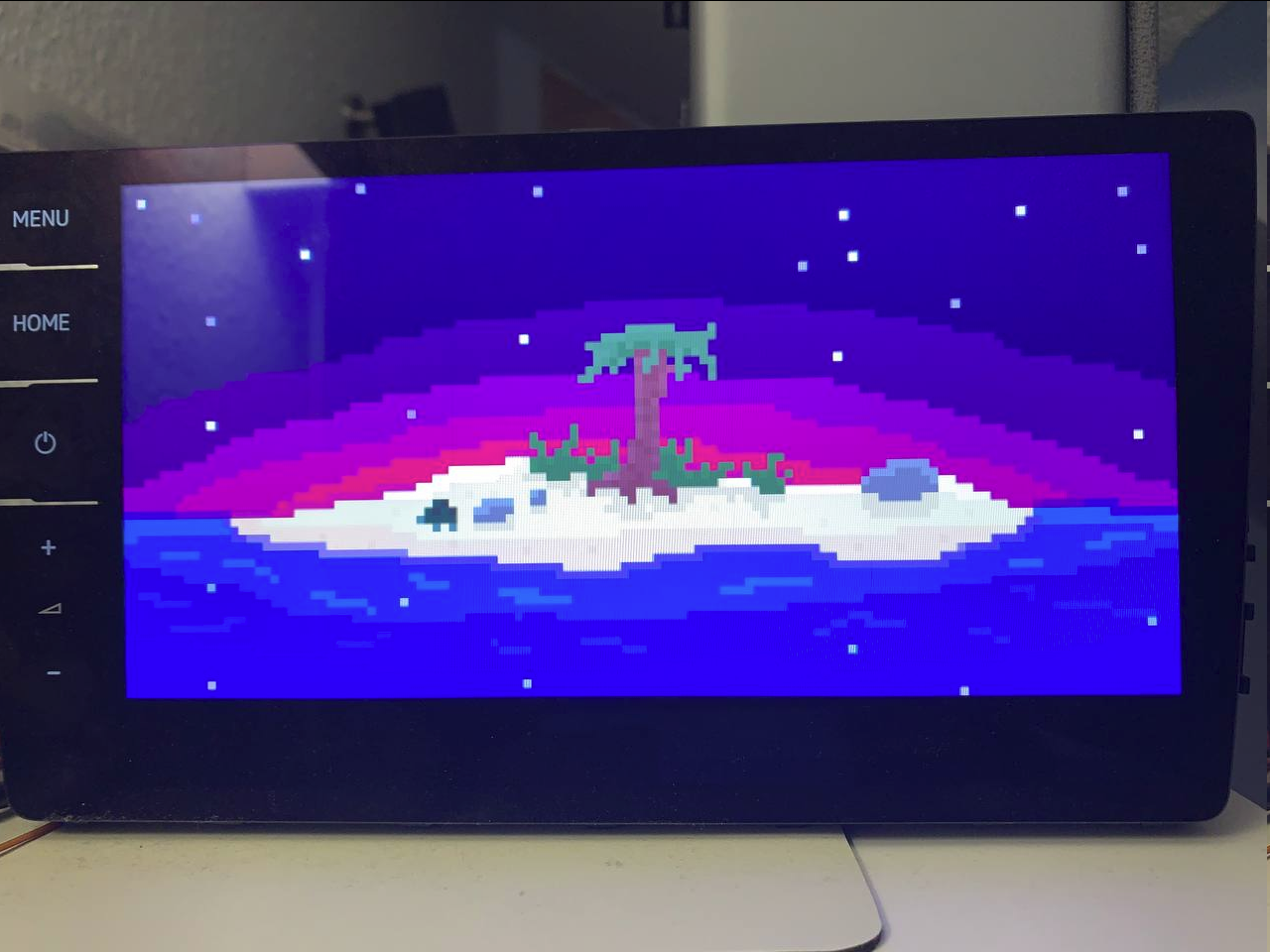

Screenshow - picture on unit
using the script below *.png/bmp/jpg/gif/tga can be displayed on screen
Animated gifs are not working
echo "displaying ${1}"
export LIBIMG_CFGFILE=/etc/imgprocessing.cfg
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target:/armle/lib/dll /eso/bin/apps/loadandshowimage ${1}&
#try to figure out if the broker is running as a signal that the framework is available
if pidin | grep -v grep | grep broker > /dev/null
then
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target IPL_CONFIG_DIR=/etc/eso/production /eso/bin/apps/dmdt sc 0 -9
echo "press any key to continue..."
read ASD
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target /eso/bin/apps/loadandshowimage 1 2 3 4 5
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target IPL_CONFIG_DIR=/etc/eso/production /eso/bin/apps/dmdt sb 0
else
echo "press any key to continue..."
read ASD
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target /eso/bin/apps/loadandshowimage 1 2 3 4 5
fi
Fom loadandshowimage binary
mime=image/png
ext=png
[img_codec_bmp.so]
mime=image/bmp
ext=bmp
[img_codec_gif.so]
mime=image/gif
ext=gif
[img_codec_jpg.so]
mime=image/jpg:image/jpeg
ext=jpg:jpeg
[img_codec_tga.so]
mime=image/tga
ext=tga
Android Auto screen output
AA is directly streamed as a h264 video stream from usb to screen.

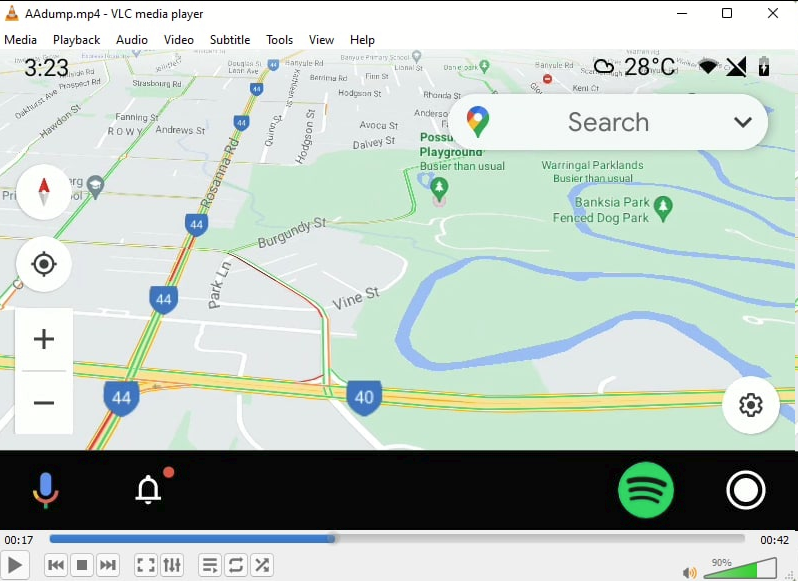

In /etc/eso/production/gal.json video dump can be enabled and in /tmp files like AAPDumpVideoSink_1970-01-01_12-12-25.h264 will be crated, which can be converted to mp4 and viewed in vlc etc - recording a full screen view of everything that happens:
Due to this video streamin dmdt sc and also screenshots do not have any effect as its seems.
MHIG
showscreen.sh
echo "displaying ${1}"
export LIBIMG_CFGFILE=/etc/config/img.conf
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target:/armle/lib/dll /eso/bin/apps/loadandshowimage ${1}&
#try to figure out if the broker is running as a signal that the framework is available
if pidin | grep -v grep | grep broker > /dev/null
then
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target IPL_CONFIG_DIR=/etc/eso/production /eso/bin/apps/DMRCClient -mv 99
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target IPL_CONFIG_DIR=/etc/eso/production /eso/bin/apps/DMRCClient -mv 99
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target IPL_CONFIG_DIR=/etc/eso/production /eso/bin/apps/DMRCClient -mv 99
echo "press any key to continue..."
read ASD
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target /eso/bin/apps/loadandshowimage 1 2 3 4 5
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target IPL_CONFIG_DIR=/etc/eso/production /eso/bin/apps/DMRCClient -mv
else
echo "press any key to continue..."
read ASD
LD_LIBRARY_PATH=/eso/lib:/armle/lib:/root/lib-target /eso/bin/apps/loadandshowimage 1 2 3 4 5
fi
/eso/bin/apps/displaymanager
use does not provide any output
/eso/bin/apps/DMRClient
DisplayManager Remote Control Tool
---Usage Information---
use: ./DMRCClient <cmd> <parameter 0> <parameter 1> ... <parameter n>
list of available commands:
<cmd> description
----------------------------------------
-gcs
prints a list of all contexts currently known to the DM
-gc <contextID>
prints a list of all dispalyables associated with one specific context
-gd
prints a list of all displayables currently known to the DM
-mv (opt: <displayableID 0> ... <displayableID n>)
activates multiview with the given list of displayables. If no list is provided MV is deactivated
-dm <true/false>
activates or deactivates the debugmode
-cl <true/false>
activates or deactivates the contextless-rendering-mode
-dc <contextID> <displayableID 0> ... <displayableID n>
declares a new context with the provided ID containing the list of given displayables
-sc <contextID>
switches to one specific context
-ts <filename>
take a screenshot which will be stored in <filename>
