eMMC and NOR programmers

UFPI programmer

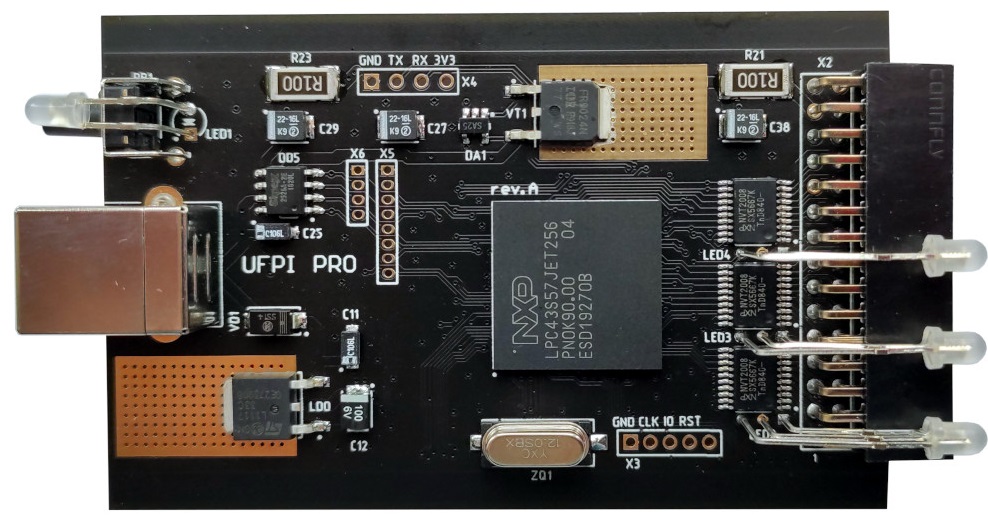

• UFPI Pro PCB https://mslw.com/product/ufpi-pro-pcb

$124.00 USD - UFPI PRO board without shell

There are some cases which you can print http://mslw.com/bb/showthread.php?tid=1476

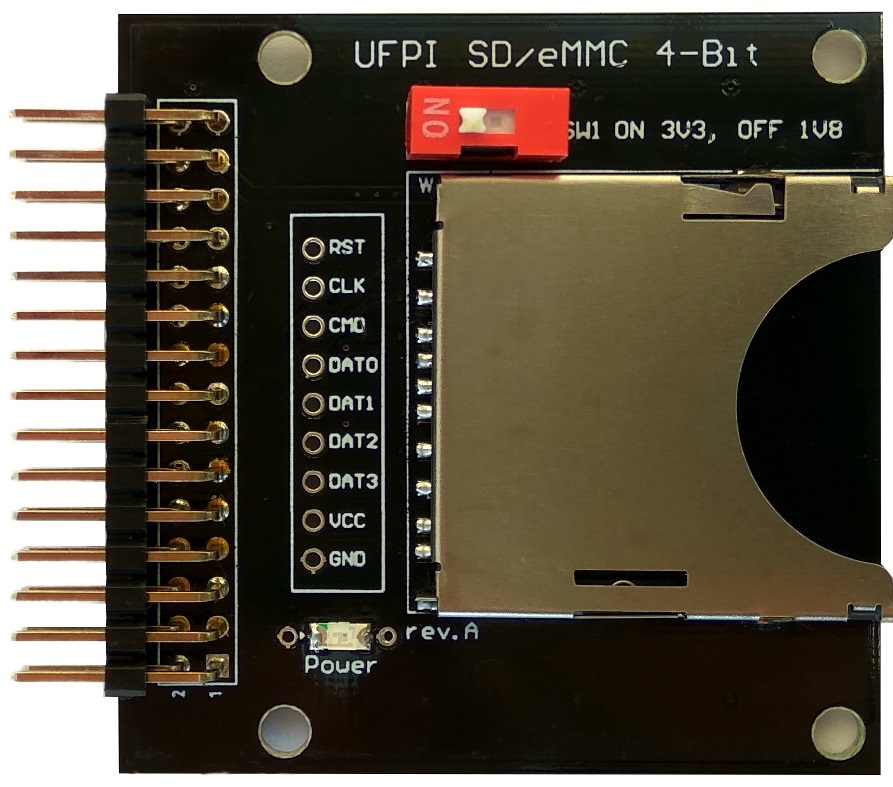

• SD Card Socket https://mslw.com/product/sd-card-socket

$10.00 USD - I am not using it, but it should be useful

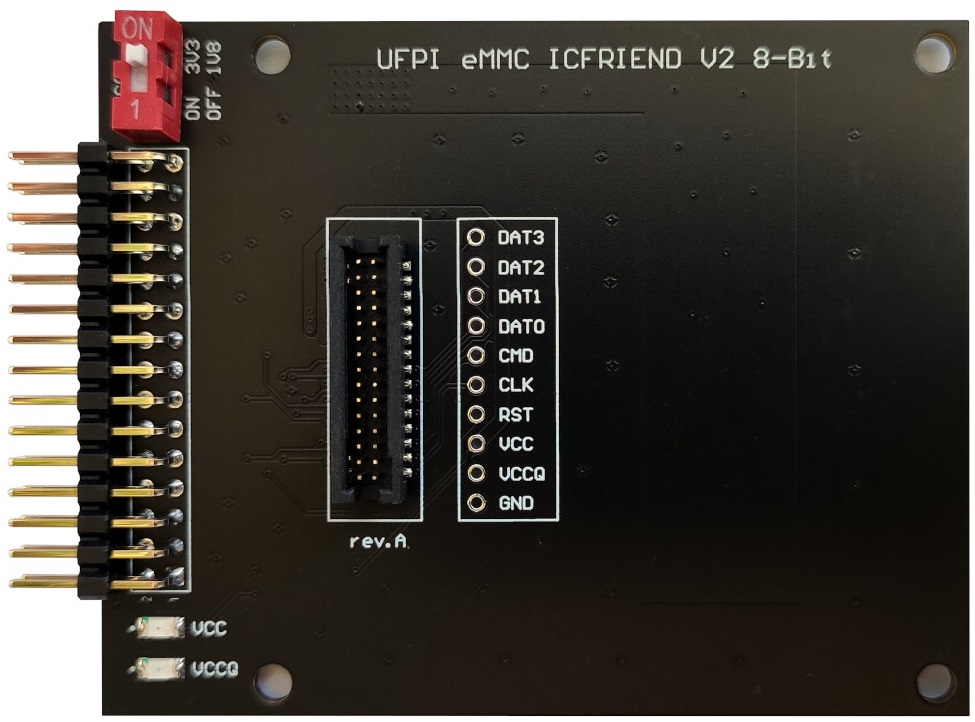

• ICFRIEND V2 8-Bit Socket https://mslw.com/product/icfriend-v2-8-bit-socket

$15.00 USD - For EMMC R/W

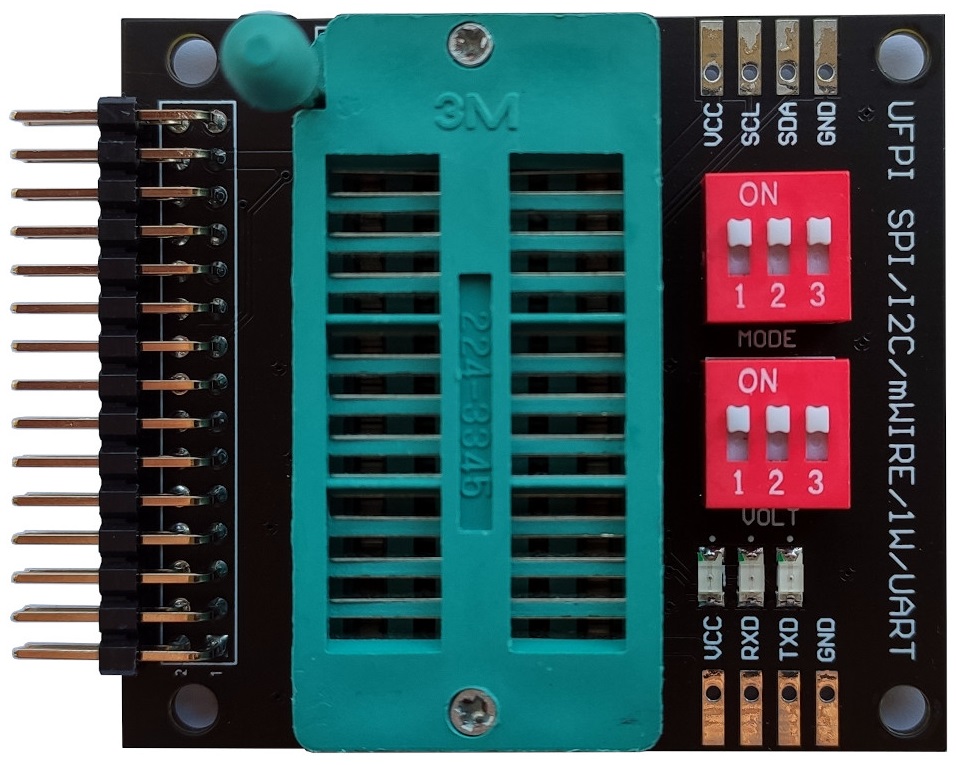

• SPI/I2C/1W/UART DIP24W 3M https://mslw.com/product/spii2c-zif-socket

$15.00 USD - for Delphi NOR repair, you also need BGA24 5*5 DIP socket

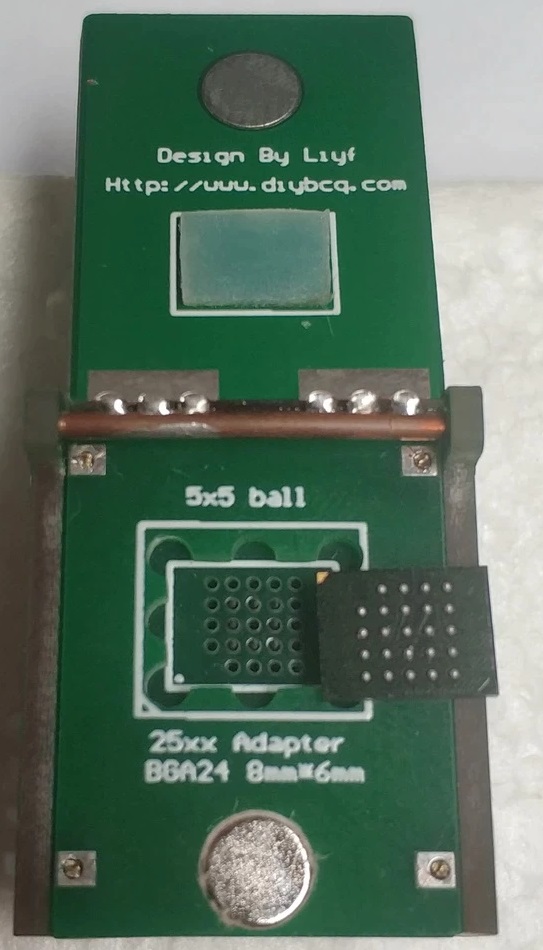

• BGA24 5*5 DIP8 socket https://www.aliexpress.com/item/1005002484310142.html

$23.40 USD - for Delphi NOR

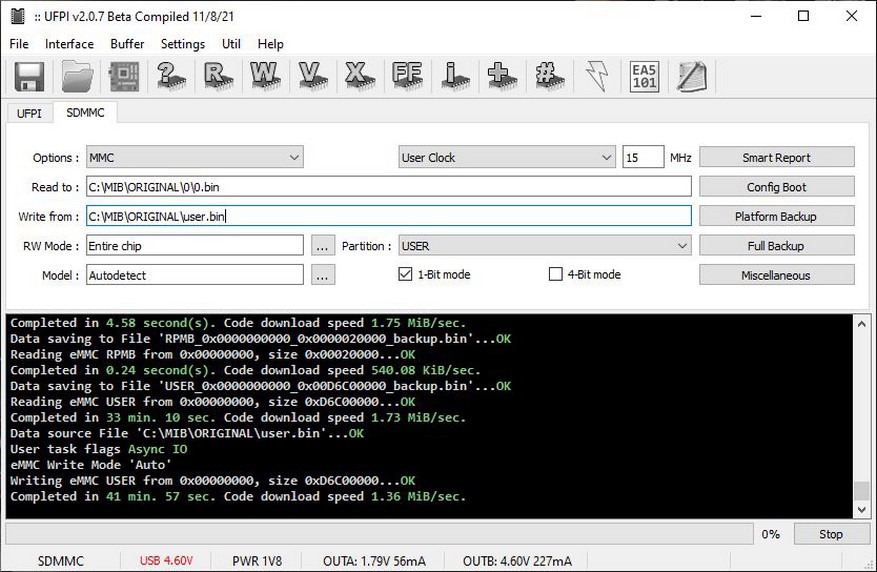

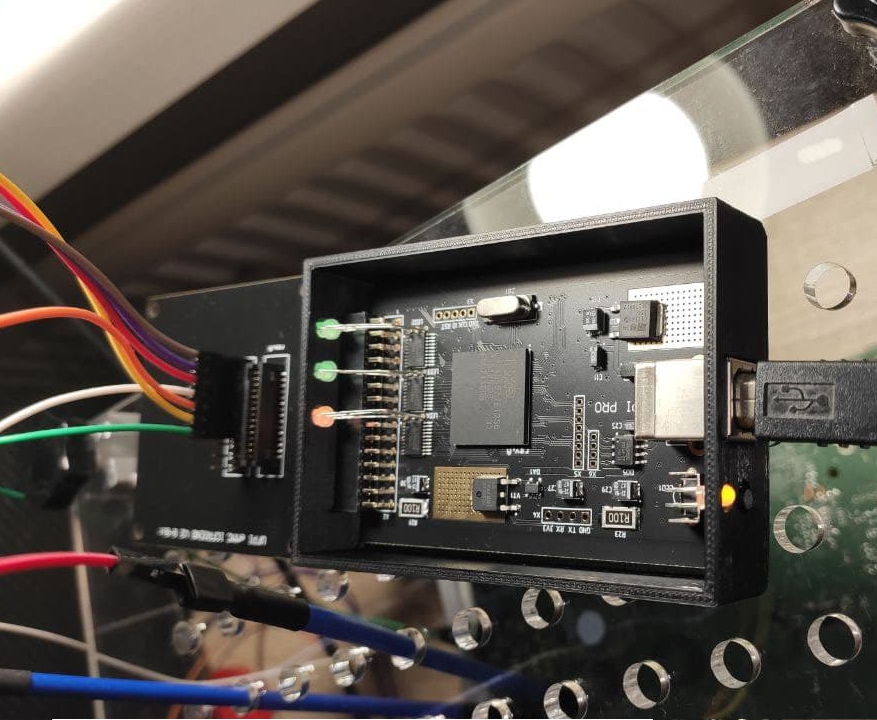

With this assembly I was able to read/write delphi EMMC

• UFPI Pro PCB
• ICFRIEND V2 8-Bit Socket

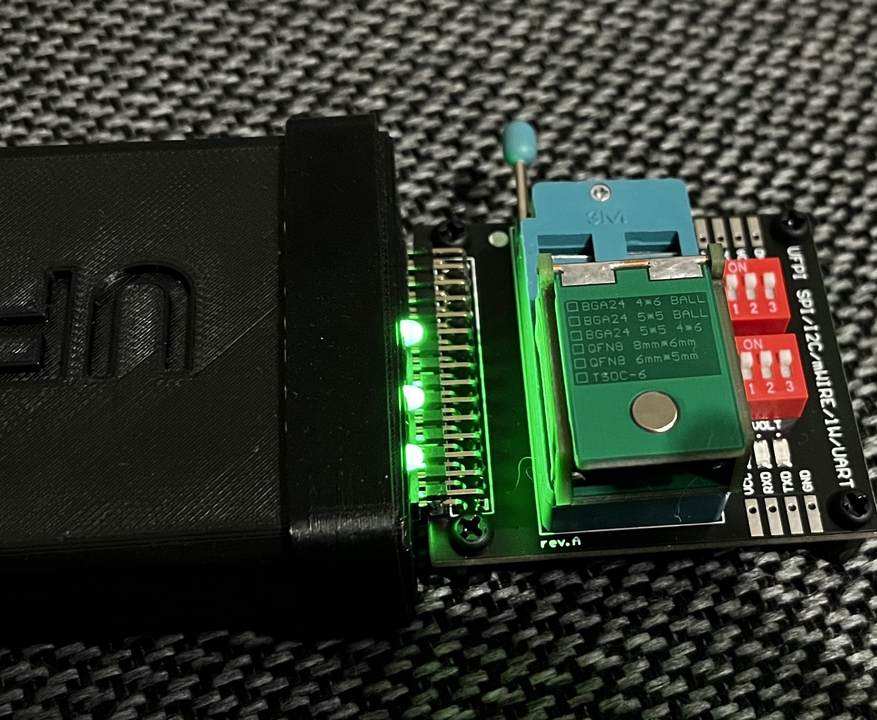

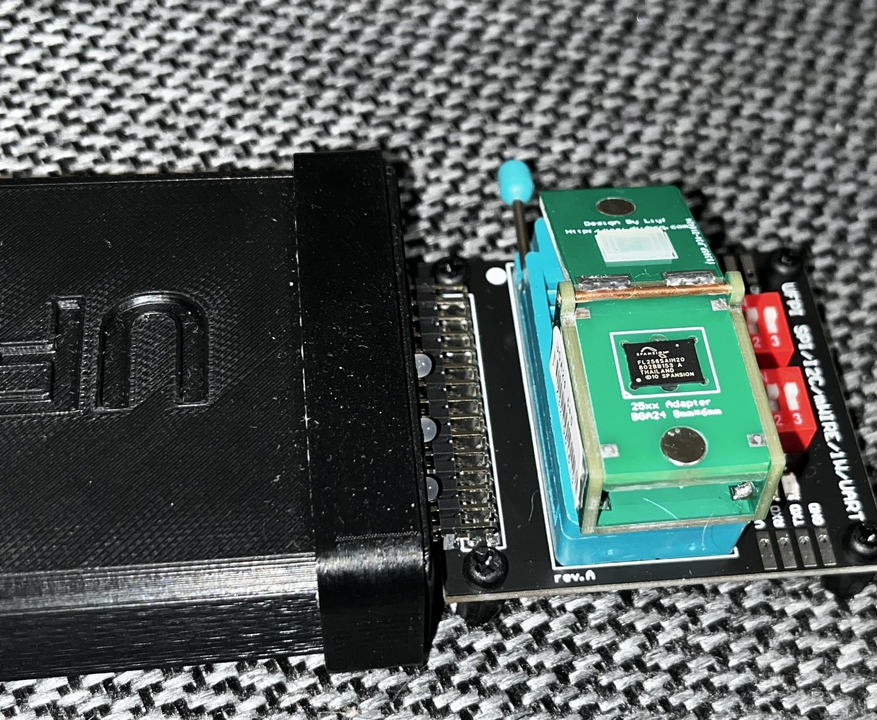

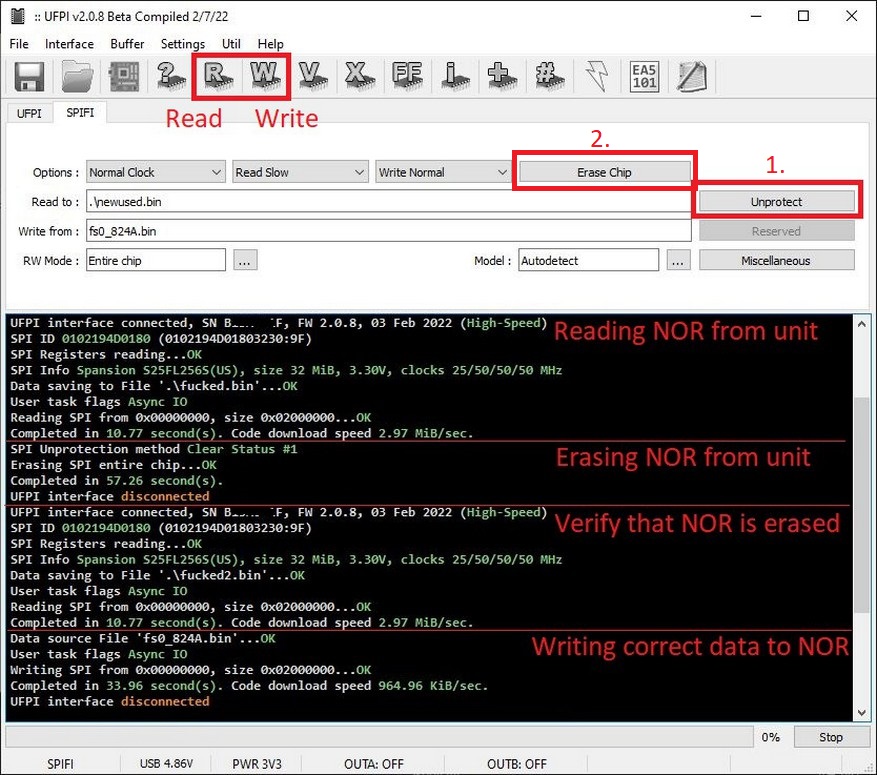

With this assembly I was able to read, erase and write delphi NOR (Yes, erase and program NOR from unit)

• UFPI Pro PCB
• SPI/I2C/1W/UART DIP24W 3M
• BGA24 5*5 DIP8 socket

\

\
