MIB3 USB HUBs

\ 5QF035726 2xUSB-A with AA&CarPlay and upto 1.5A (BC1.2 charge) support + 1xAUX.

This hub is compatible with MIB STD2/MIB2 STD/MHI2/MH2p/MOI3/MHI3/MPR3 and is NOT compatible with MIB Entry (MIB2 GP/MEN3):

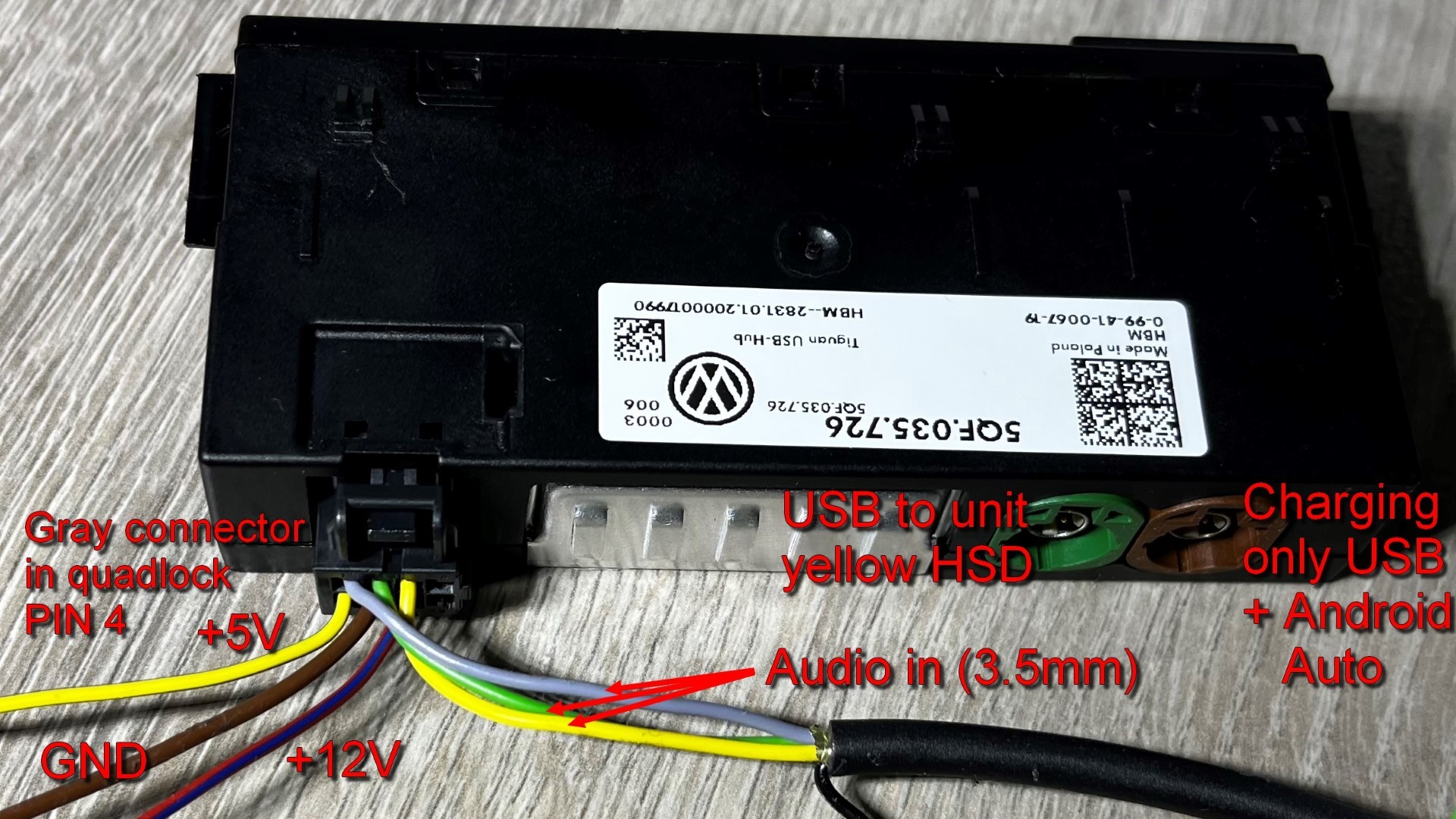

Note: Wires have the real color Note2: MIB2 has +5V in green connector in quadlock (PIN 3)

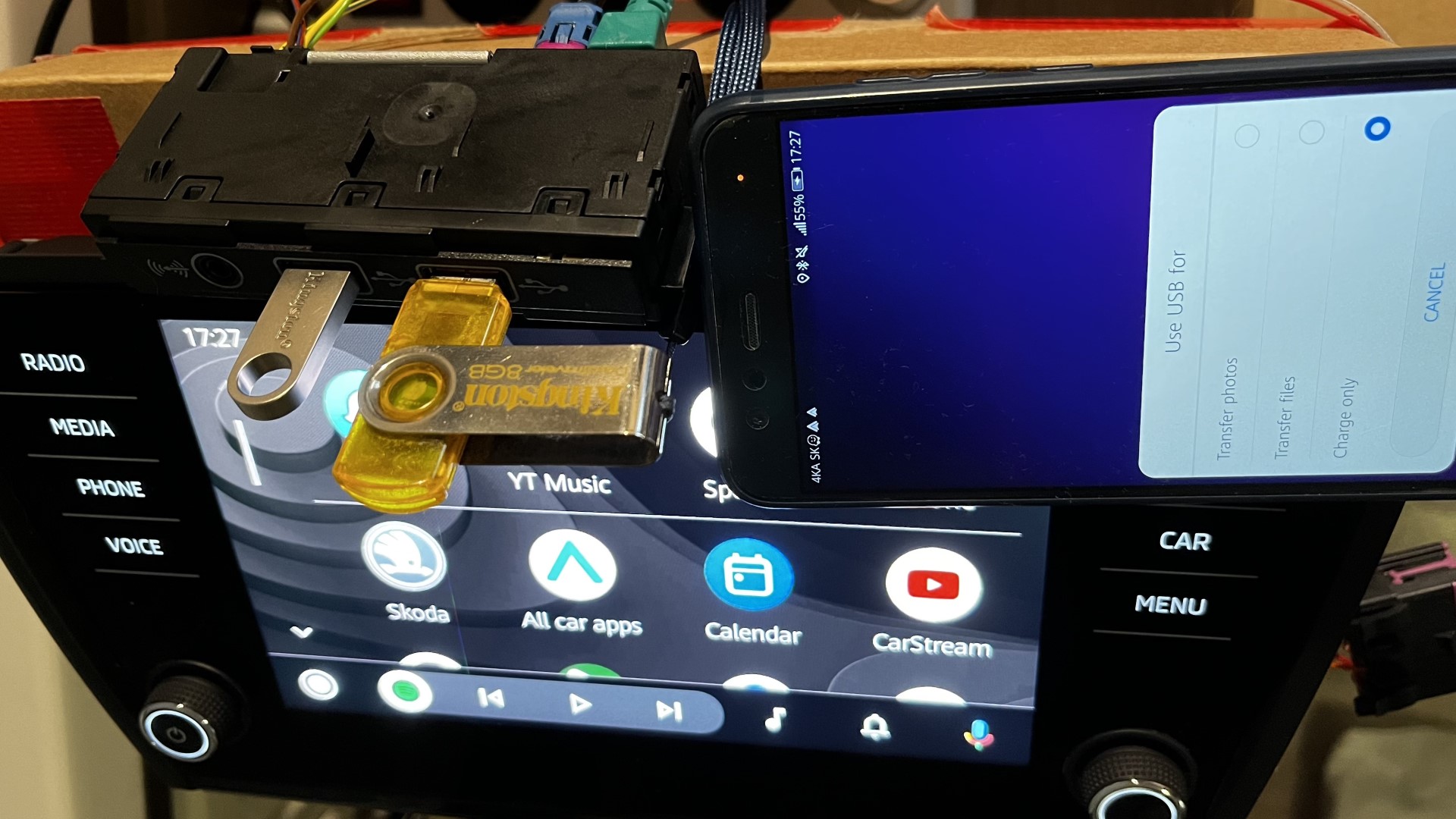

Confirmed on MIB2, brown connector is charging only + Android Auto. It's not accessible as media device or Carplay, even if it's coded as 3rd USB.

657035736 2xUSB Type-C with AA&CarPlay and upto 1.5A (BC1.2 charge) support. It is compatible with MIB Entry (MIB2 GP/MEN3) and is NOT compatible with MIB STD2/MIB2 STD/MHI2/MH2p/MOI3/MHI3/MPR3

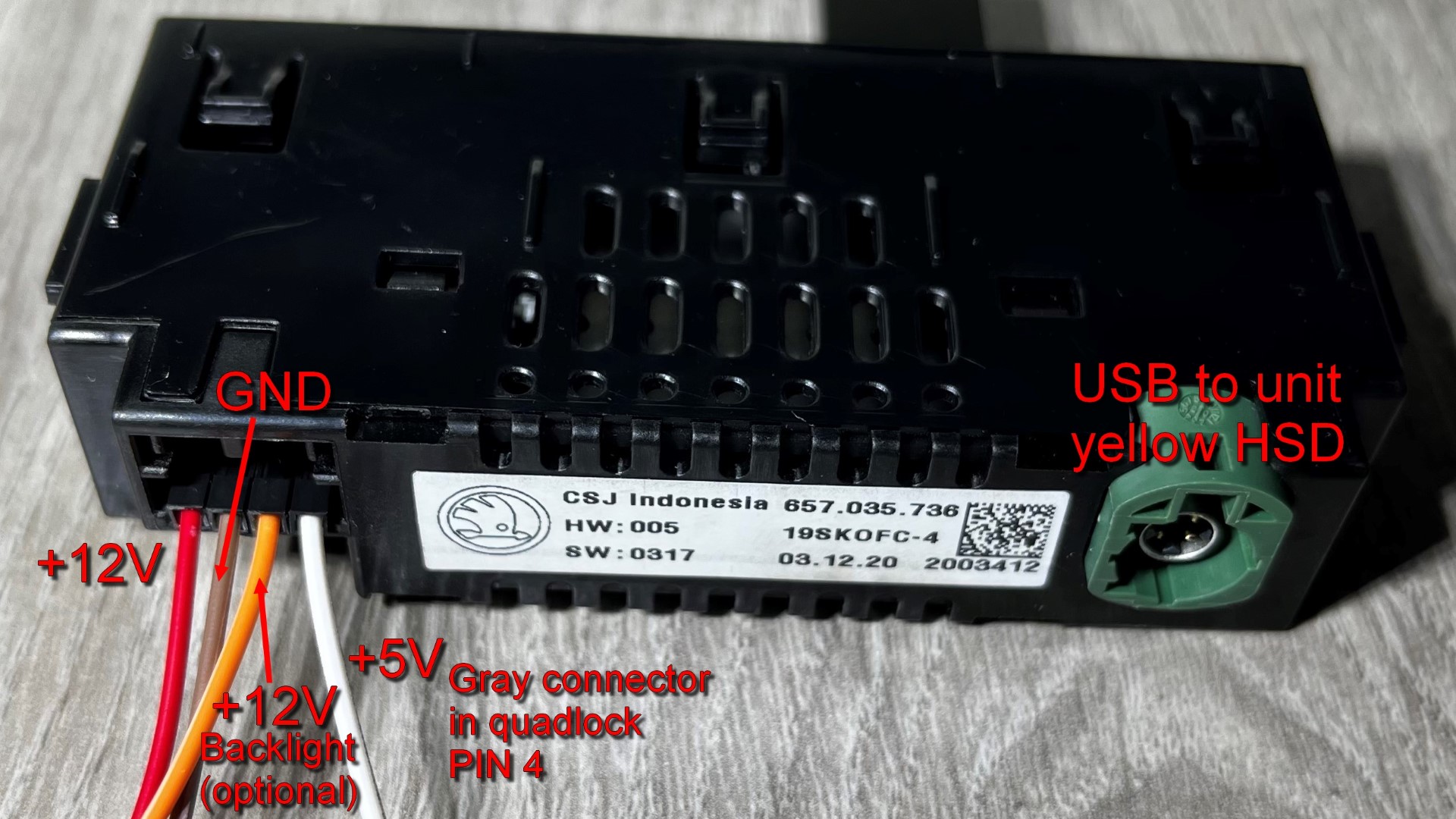

Note: Real wires color may be different ( HUB was without connector)

Activation of the hub ports in the adaptations of block 5F is the same for all MIBs:

  • ENG248432-ENG248482-function_configuration_media-USB: usb_ipod

(MIB2 has this switch in long coding, byte19) * IDE10480-MAS10741-Interface for external media: activation-Connection 1: activated * IDE10480-MAS10742-Interface for external media: activation-Connection 2: activated

Information about other MIB3, MIB2 and MIB1 USB hubs and ports can be found at https://www.drive2.com/l/571244670214998859/
