Understanding of ifs-root.ifs patching

On the MHIG units, the RCC NOR flash dump done with:

cat /net/rcc/dev/fs0 >/net/mmx/fs/sda0/rcc_fs0

rcc_fs0 consists of multiple partitions: bootloader (IPL), efs-system.efs, ifs-emergency.ifs, ifs-root.ifs

ifs-root.ifs itself contains 2 ifs parts, one of which is ifs-root-stage2 and contains QNX ELF binary /usr/apps/MIBRoot that does CP and FECs related checks.

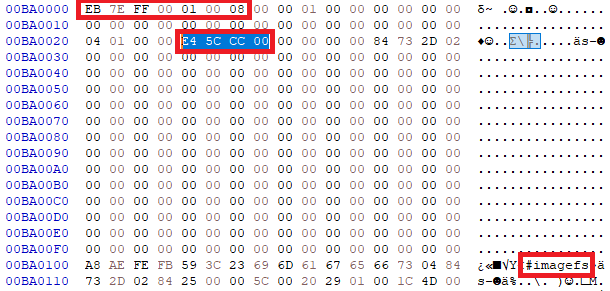

To quickly find the offset of the ifs-root-stage2.ifs in rcc_fs0 or ifs-root.ifs, you can search for EB7EFF00010008 bytes or #imagefs string in HxD:

At offset 0x24 you can see the size of the ifs-root-stage2.ifs file

Start addresses of ifs-root-stage2.ifs on different train versions:

MHIG_EU_AU_K1549 0xBA0000

MHIG_EU_AU_K1555 0xBA0000

MHIG_EU_VW_K0344 0xBA0000

MHIG_EU_VW_K1550 0xBA0000

MHIG_EU_VW_S1532 0xBC0000

MHIG_JP_VW_S0027 0xBE0000

Unpacking and packing back ifs-root-stage2.ifs

Unpack, modify MIBRoot and pack it back with IFS_Utility_vLO
