shadow - how to retrieve hash of root password from the unit

Despite the fact that m.i.b includes a comprehensive password list, it still lacks passwords for RCC, MMX, and/or RCC Emergency IFS for some trains/MUs.

Dump RCC and/or MMX NOR to find root password hashes

The most easy way is to check the RCC-fs0.bin and MMX-fs0.bin in the m.i.b. backup.

But if the backup is absent and you have no password for RCC/MMX and/or RCC Emergency IFS, then you can upload an emergency.ifs from a FW with a known root password via ZMODEM :)

After emergency.ifs is running and you logged in, and dump RCC & MMX NORs to SD card like:

mount -uw /net/mmx/fs/sda0/
cat /net/rcc/dev/fs0 >/net/mmx/fs/sda0/RCC_fs0.bin
cat /net/mmx/dev/fs0 >/net/mmx/fs/sda0/MMX_fs0.bin

MMX/RCC hash of root password

Extracting from FW update or MMX-fs0.bin

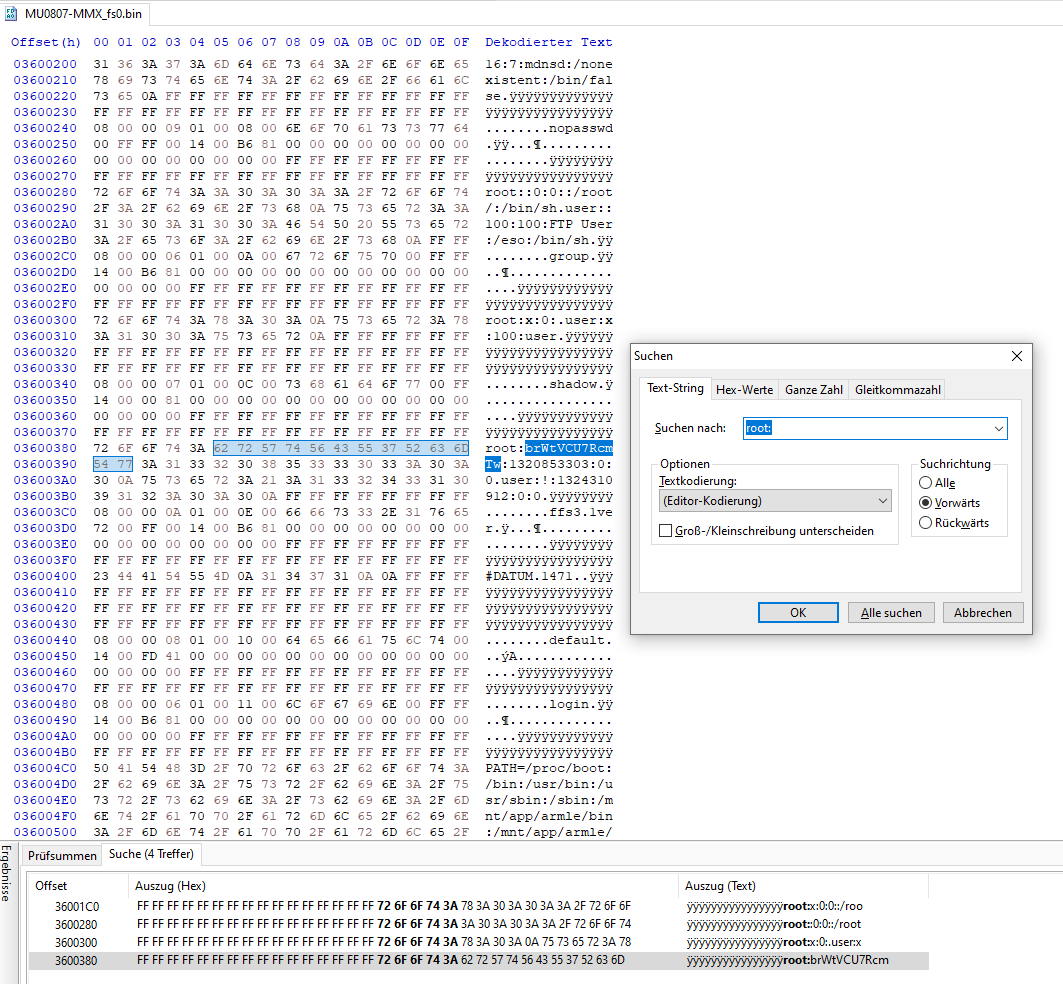

Open\MMX2\efs-sys\XX\default\efs-system.imgor MMX-fs0.bin in any hex editor like HxD and search forroot:

Hash is brWtVCU7RcmTw in this case.

RCC Emergency IFS root password hash

Extracting from FW update files

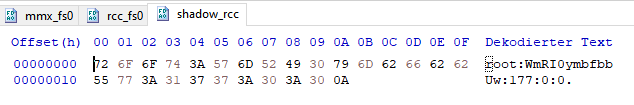

Use IFSTool to split and unpack\RCC\ifs-root\XX\default\ifs-root.ifsto find the hash in /etc/shadow_rcc file.

Extracting from RCC-fs0.bin

Hash is stored in shadow_rcc file that is compressed in ifs-root-stage1 partition that holds Emergency IFS.

To get ifs-root-stage1 you need to exctract IFS-root.ifs from the RCC-fs0.bin first:

  • start offset 0x0540000

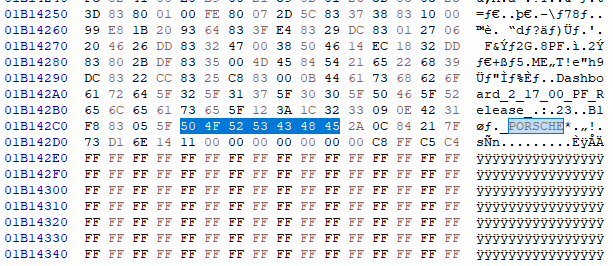

  • end offset somewhere with PORSCHE, which is the end of ifs-root-stage2 image

Save selection from start offset till end offset as a new file and split it into stage1 and stage2 with IFSTool, then unpack ifs-root-stage2.ifs and get /etc/shadow_rcc file:

Alternatively you can find the hash in the unpacked image file using root: in HxD search

Brute force the hash to find password

QNX6.5 on MHI2 uses DES hashes with salt stored in the first two characters of the hash.

E.g. in hash: WmRI0ymbfbbUw the salt is: Wm

:::info Usually brute forcing can be done in 2 days.

Sometimes, with limiting the possible characters and their combinations used in other known password even in a couple of hours.

:::
