5F - Navigation in AID

==This is for MIB 2 High (Discover Pro)==

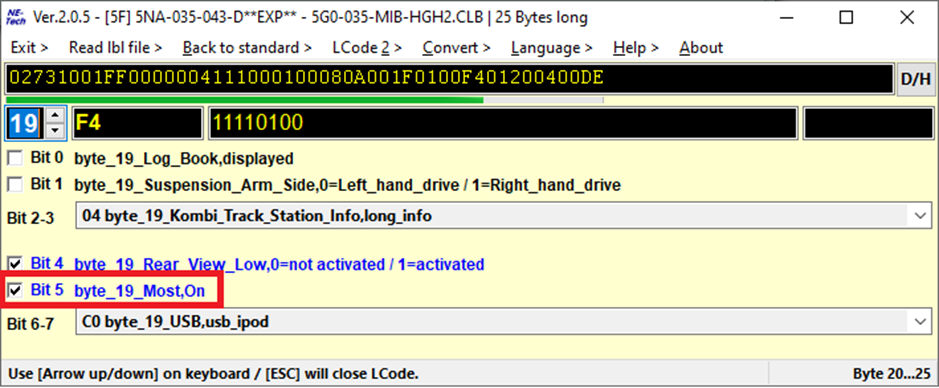

Coding:\n[5F]_byte_19_Most

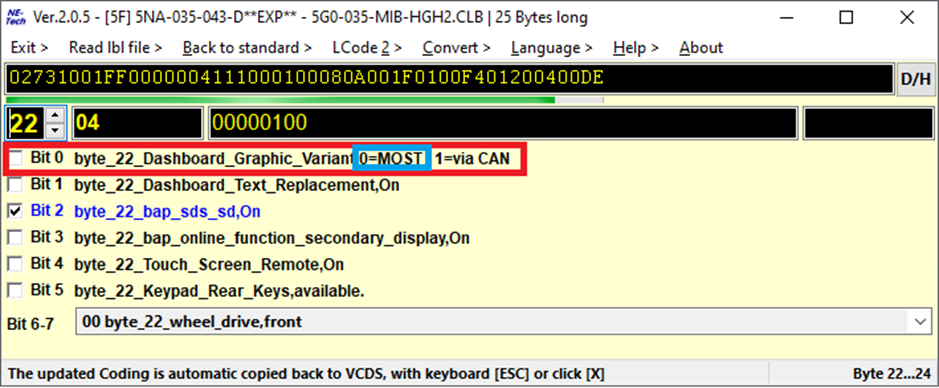

\n[5F]_byte_22_Dashboard_Graphic_Variant:

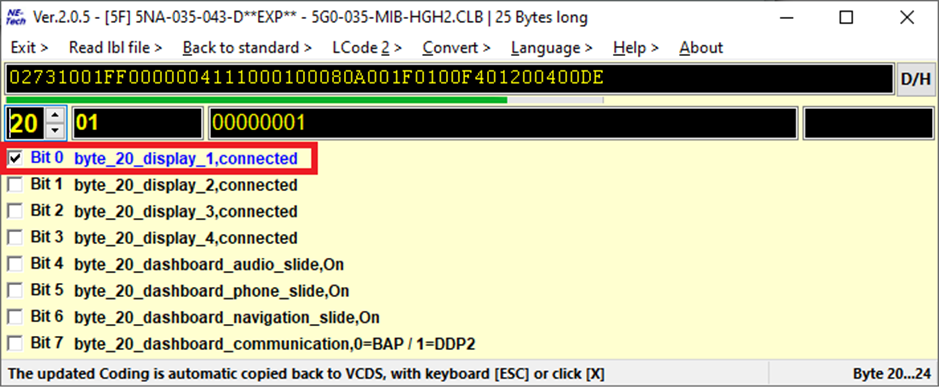

[5F]byte_20 Display 1

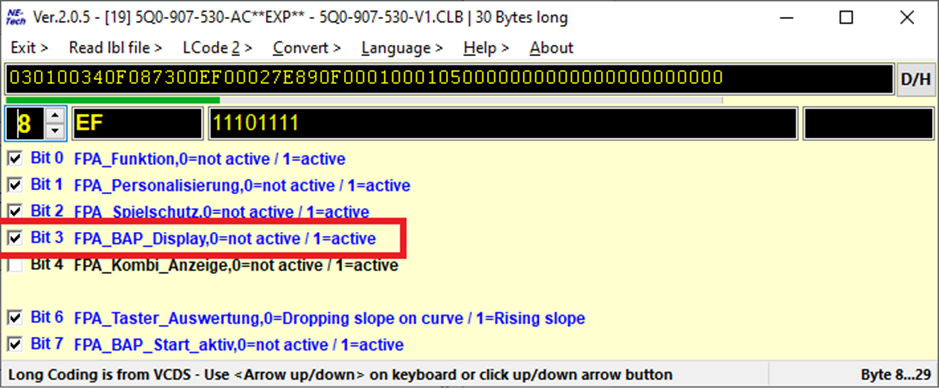

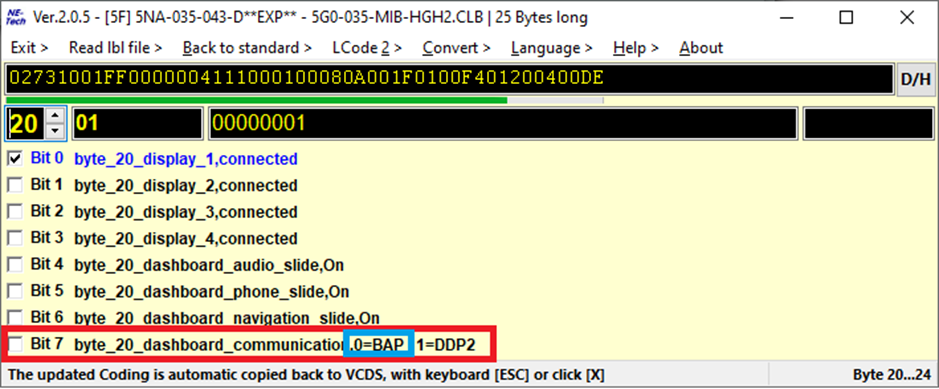

[LO]byte_20 Dashboard communication BAP\n\n \n

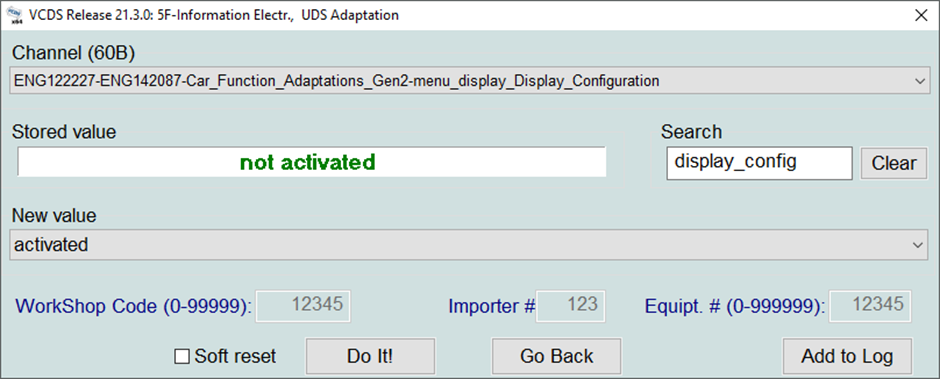

Adaptions:\n[5F]_menu_display_Display_Configuration ( Activated):

\n\n

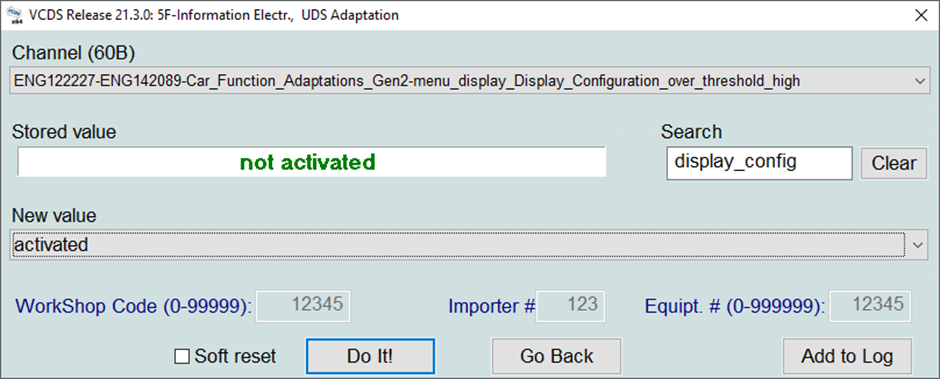

[5F]_menu_display_Display_Configuration_over_threshold_high ( Activated):\n\n

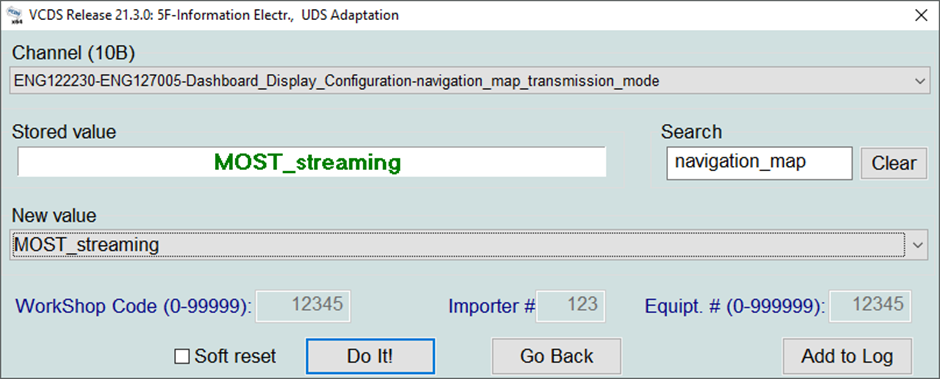

\n[5F]_navigation_map_transmission_mode:

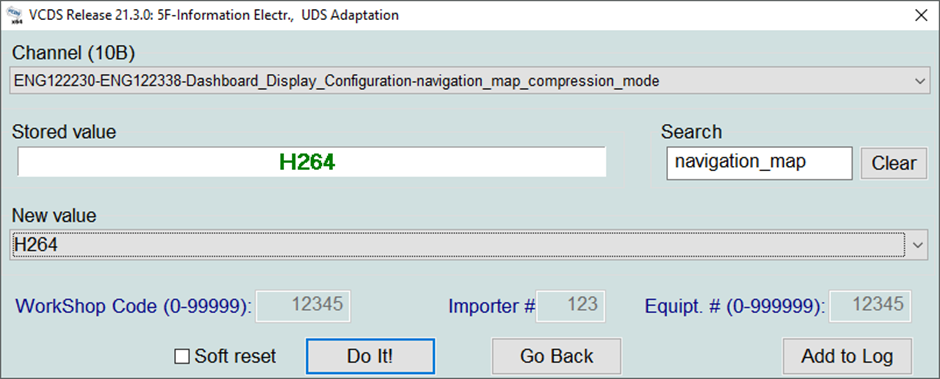

\n[5F]_navigation_map_compression_mode:

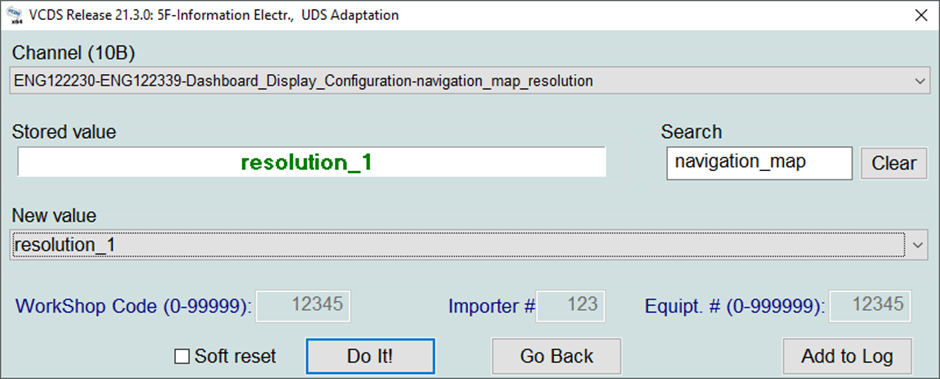

\n[5F]_navigation_map_resolution:

\n

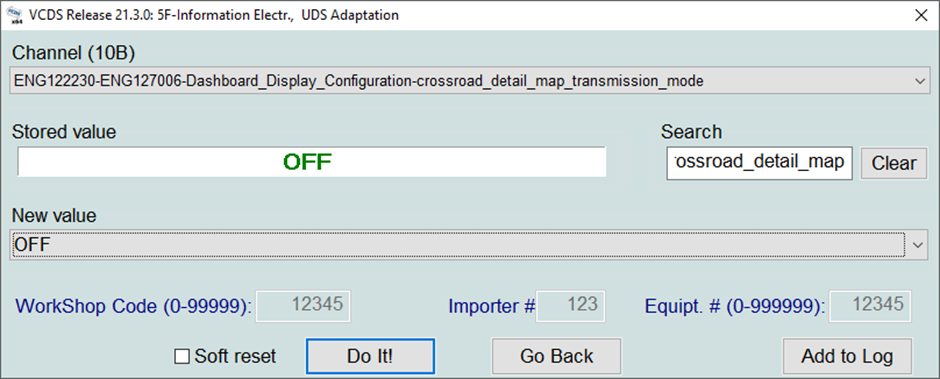

[5F]_crossroad_detail_map_transmission_mode:

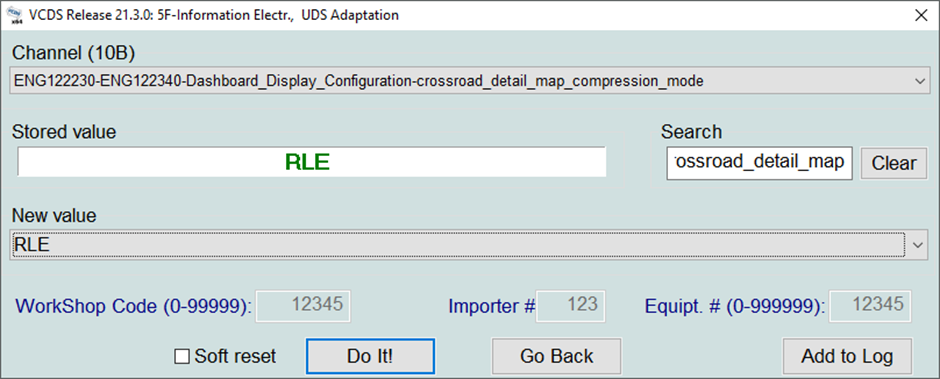

\n[5F]_crossroad_detail_map_compression_mode:

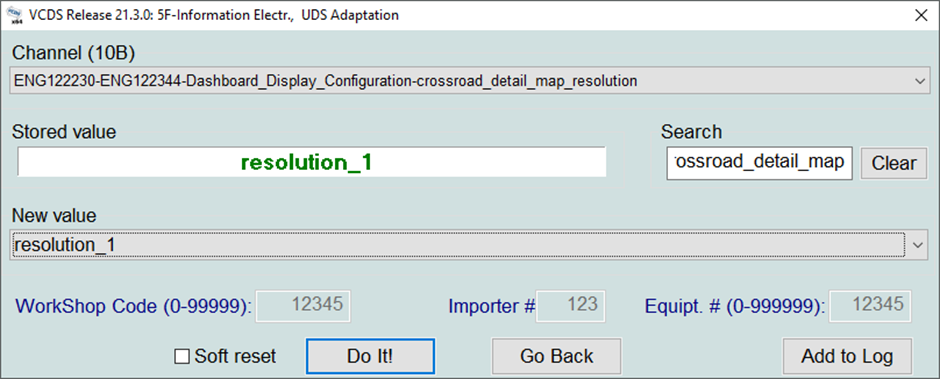

\n[5F]_crossroad_detail_map_resolution:

\n

[5F]_coverart:

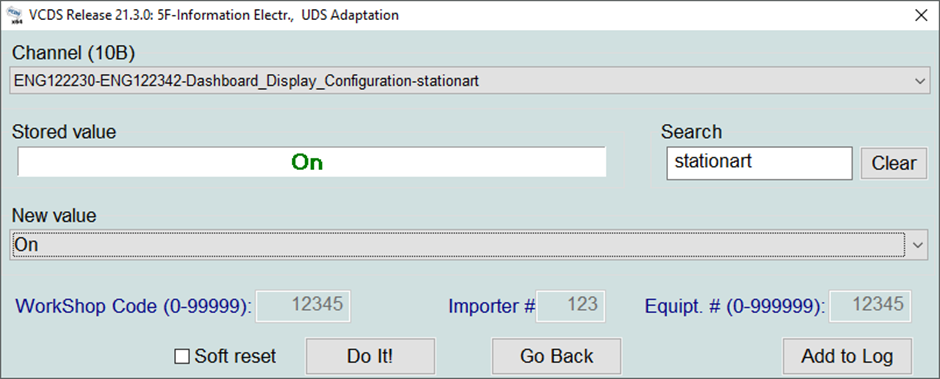

\n[5F]_stationart:

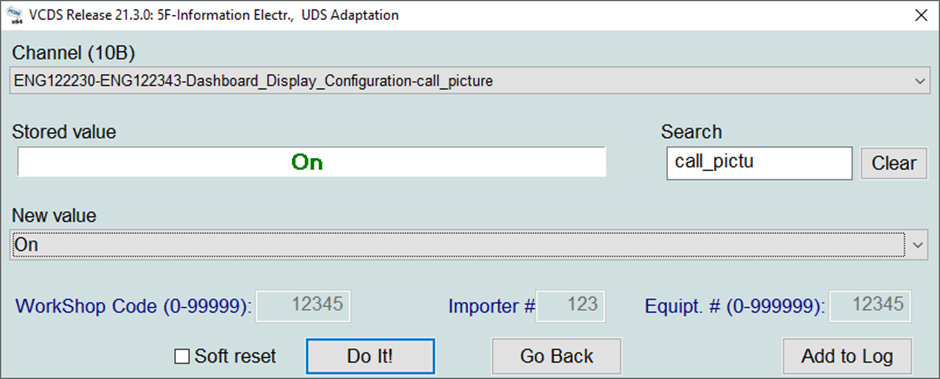

\n[5F]_call_picture:

\n\n

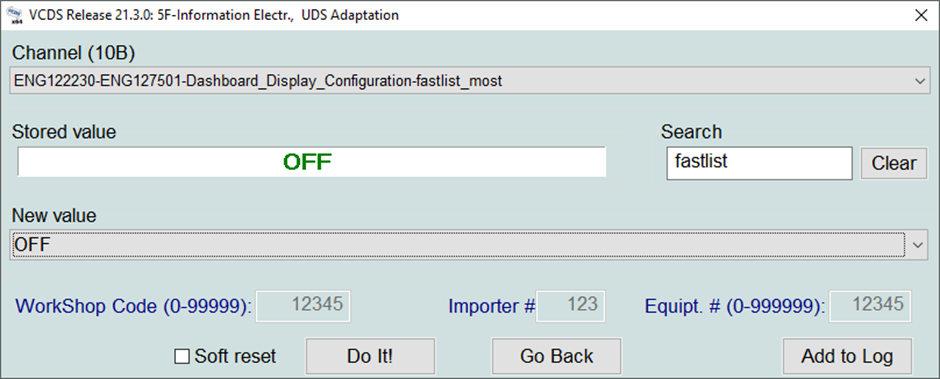

[5F]_fastlist_most:

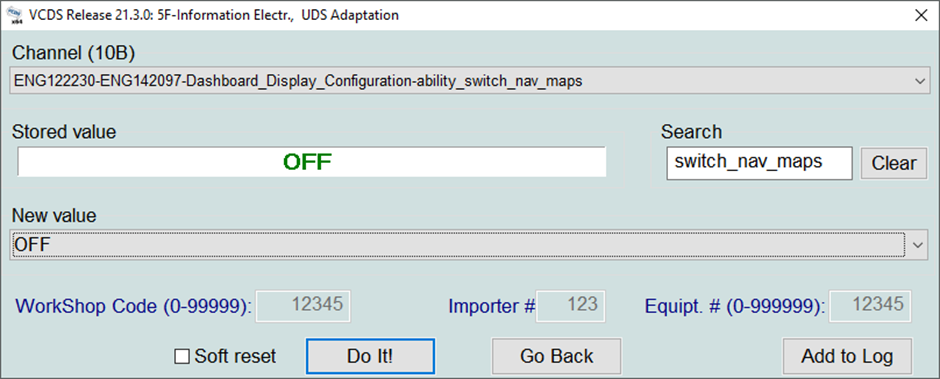

\n[5F]_ability_switch_nav_maps:

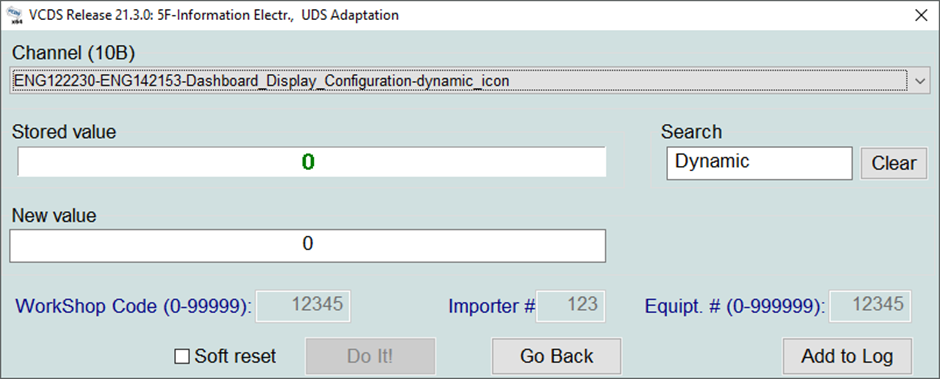

[5F] Dynamic Icon

\n\n

[5F]_Dash Board Display Unit: \n

This is on the Golf not always needed

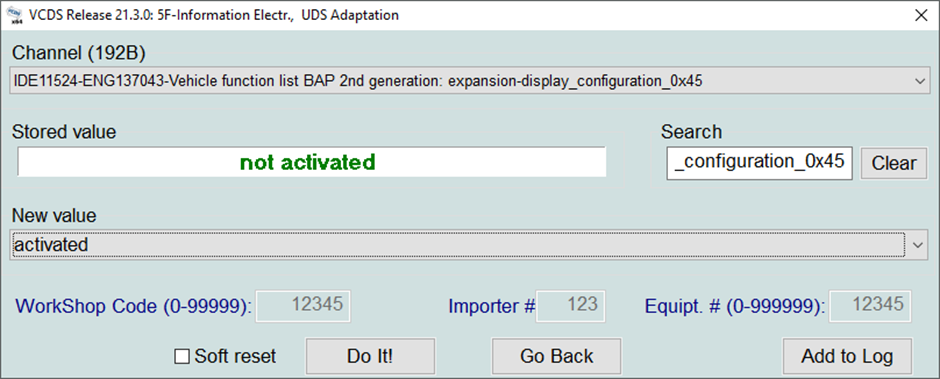

\n[5F]_display_configuration_0x45 ( Activated):

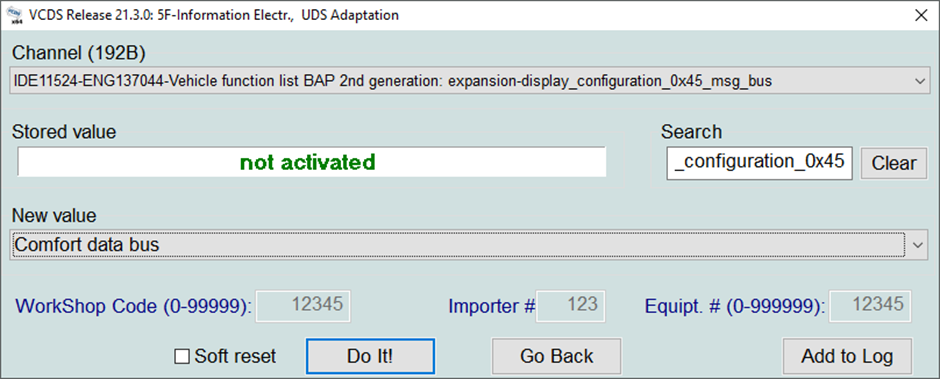

\n[5F]_display_configuration_0x45_msg_bus ( Comfort Data Bus) :
