Introduction

:::info A nice introduction is at this link.

:::

First of all, thank you for reading or parcipating in this this document. We are a group of members who each of us have diffrent lives, but have many things together. Specifically MIB and stuff around it.

As of you know, some retrofits require connector pins for automotive wires (FLRY), automotive wires, connector, connector housings and so on. On many retrofit guides on the internet are OEM numbers. Officially you can buy stuff from the dealer if their central warehouse has the desired item. As of now (year 2022) at the dealer you cannot buy sets of connectors with their adequate pin. You can buy separate connectors and their housing, but you cannot buy these pins separate. You can buy them only crimped on a automotive wire (usually 200cm).

There are other alternatives, such as AliExpress and eBay/Amazon or any other retailer, but the quality of aliexpress ones are bad. Source: https://www.drive2.ru/l/564622861436715133/

So i found out that you can buy pins by their universal name VW JPT / VW MOST / VW ISO / VW MCP and superseal connectors.

Parts by their TYCO numbers

:::info Source:

https://www.vwvortex.com/threads/electrical-connector-part-numbers.6948714/

https://www.vwvortex.com/threads/vw-terminal-connectors-reference.9202433/

:::

TERMINALS/PINS

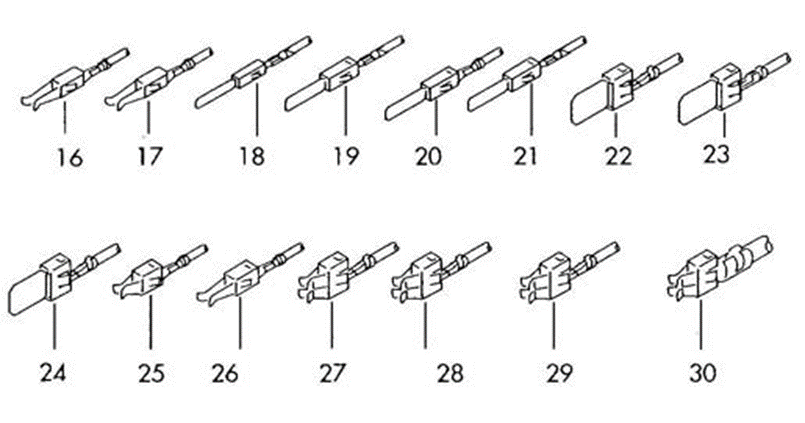

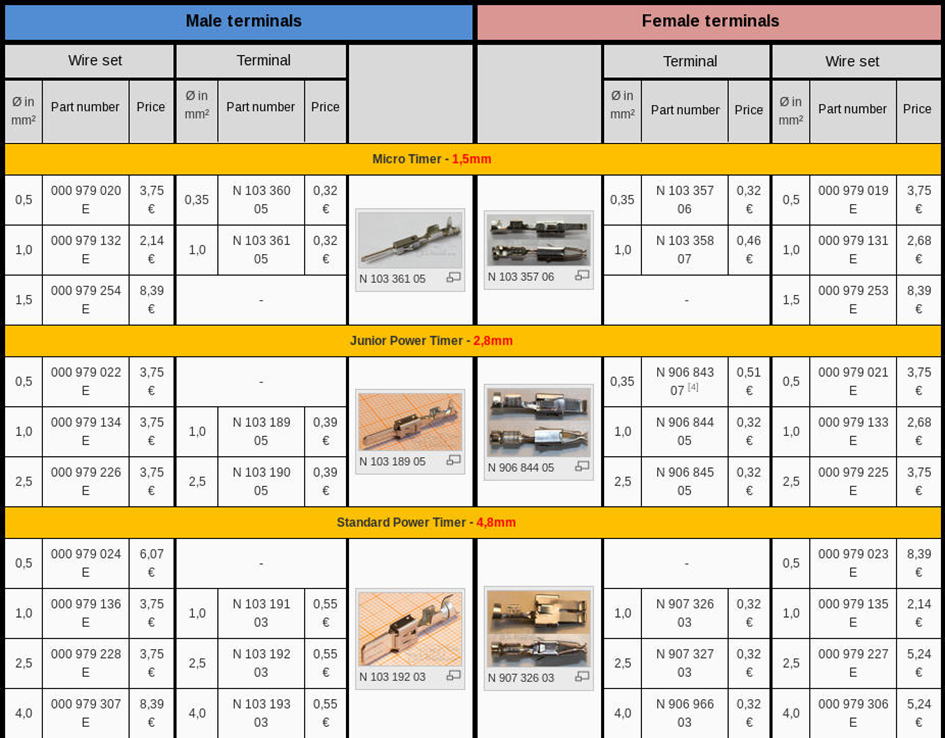

1.5mm PINS (Micro Timer):

16 - N 10335706 - 1.5mm flat contact for 0.35-0.5mm² wire (female) -> TYCO p/n, tin plated: 969019-2; TYCO p/n, gold plated: 969019-3

17 - N 10335807 - 1.5mm flat contact for 0.5-1.0mm² wire (female) -

TYCO p/n, tin plated: 964275-2; TYCO p/n, gold plated: 964275-3

18 - N 10336005 - 1.5mm flat contact with retaining lug for 0.35-0.5mm² wire (male) -> TYCO p/n, tin plated: 969029-2; TYCO p/n, gold plated: 969029-3

19 - N 10336105 - 1.5mm flat contact with retaining lug for 0.5-1.0mm² wire (male) -> TYCO p/n, tin plated: 964270-2; TYCO p/n, gold plated: 964270-3 2.8mm PINS (Junior Power Timer):

2.8mm PINS (Junior Power Timer):

** - VW P/N N/A - 2.8mm flat contact with retaining lug for 0.35-0.5mm² wire (male) -> TYCO p/n, tin plated: 2-964297-1; TYCO p/n, gold plated: 1-964297-3

20 - N 10318905 - 2.8mm flat contact with retaining lug for 0.5-1.0mm² wire (male) -> TYCO p/n, tin plated: 2-964299-1; TYCO p/n, gold plated: 1-964299-3

21 - N 10319005 - 2.8mm flat contact with retaining lug for 1.5-2.5mm² wire (male) -> TYCO p/n, tin plated: 2-964301-1; TYCO p/n, gold plated: 1-964301-3

25 - N 90684307 - 2.8mm flat contact for 0.35-0.5mm² wire (female) -> TYCO p/n, tin plated: 964281-2; TYCO p/n, gold plated:964281-4

25 - N 90684405 - 2.8mm flat contact for 0.5-1.0mm² wire (female) -> TYCO p/n, tin plated: 964285-2; TYCO p/n, gold plated:964285-4

26 - N 90684505 - 2.8mm flat contact for 1.5-2.5mm² wire (female) -> TYCO p/n, tin plated: 964287-2; TYCO p/n, gold plated:964287-5

4.8mm PINS (Standard Power Timer):

22 - N 10319103 - 4.8mm flat contact for 0.5-1.0mm² wire (male) -> TYCO p/n, tin plated: 964309-1

23 - N 10319203 - 4.8mm flat contact for 1.5-2.5mm² wire (male) -> TYCO p/n, tin plated: 964311-1

24 - N 10319303 - 4.8mm flat contact for 4.0mm² wire (male) -> TYCO p/n, tin plated: 964313-1

27 - N 90732603 - 4.8mm flat contact for 0.5-1.0mm² wire (female) -> TYCO p/n, tin plated: 969041-1

28 - N 90732703 - 4.8mm flat contact for 1.5-2.5mm² wire (female) -> TYCO p/n, tin plated: 969043-1

29 - N 90696603 - 4.8mm flat contact for 4.0mm² wire (female) -> TYCO p/n, tin plated: 969045-1

30 - N 90422102 - 4.8mm flat contact with retaining lug for 6mm² wire (female)

Note: VW does not sell gold plated terminals. Tin plated pins are available in bags of 25 pieces:

WIRE SEALS

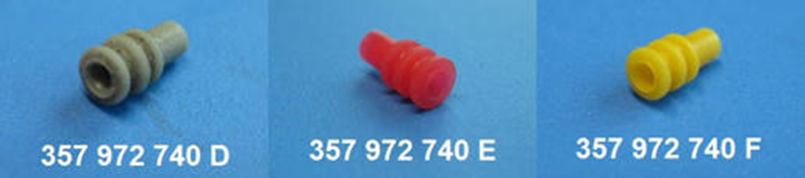

3.9x7.8mm wire seals for 1.5mm terminals:

357972740D - grey, for 0.5-0.75mm² wire -> TYCO p/n: 963530-1

357972740E - red, for 0.35-0.5mm² wire -> TYCO p/n: 964971-1

357972740F - yellow, for 1.0mm² wire -> TYCO p/n: 964972-1

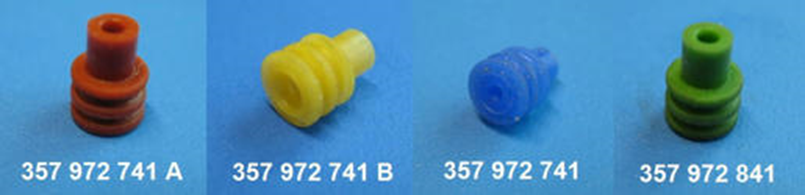

5.6x7.8mm wire seals for 2.8mm terminals:

357972741 - blue, for 0.35-1.0mm² wire -> TYCO p/n: 963294-1

357972741A - red, for 1,5mm² wire -> TYCO p/n: 963293-1

357972741B - yellow, for 1.5-2.5mm² wire -> TYCO p/n: 963292-1

357972841 - green, cavity plug -> TYCO p/n: 828922-1

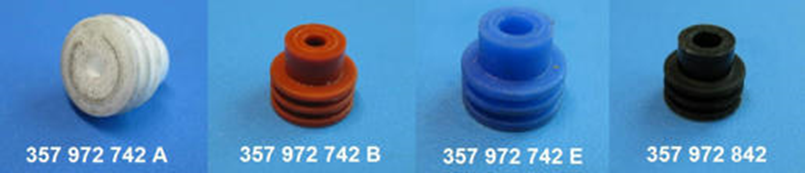

9.0x7.8mm wire seals for 4.8mm terminals:

357972742A - white, for 0.5-1.0mm² wire -> TYCO p/n: 963243-1

357972742B - red, for 1.5-2.5mm² wire -> TYCO p/n: 963244-1

357972742E - blue, for 2.5-4.0mm² wire -> TYCO p/n: 963245-1

357972842 - black, cavity plug -> TYCO p/n: 100132-1

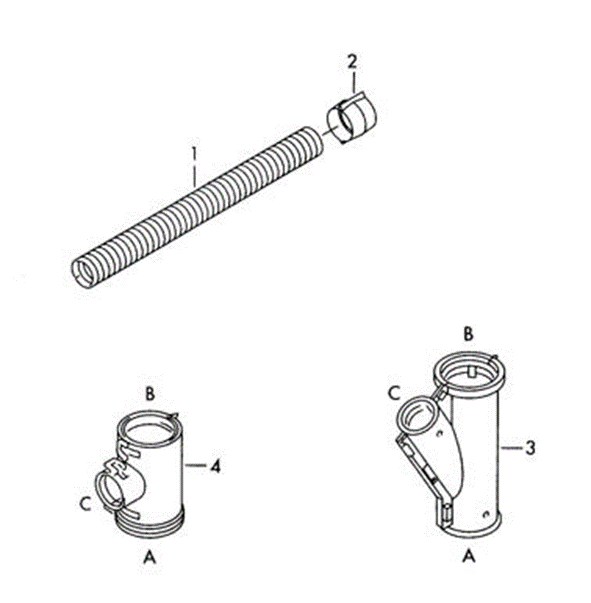

TUBING

No. 1 - split convoluted tubing (coils of 5 meters):

N 10732401 - 4.5mm

N 10732501 - 7.5mm

N 10732601 - 10mm

N 10732701 - 13mm

N 10732801 - 17mm

N 10732901 - 22mm

No. 2 - end piece:

N 90681901 - 4.5mm

N 90682001 - 7.5mm

N 90682101 - 10mm

N 90682201 - 13mm

N 90682601 - 17mm

N 90682701 - 22mm

No. 3 - Y piece: __A_B___C

N 90680701 - 7.5mm-4.5mm-4.5mm

N 037972645 - 7.5mm-7.5mm-4.5mm

N 90680901 - 22mm-17mm-10mm

N 90681201 - 22mm-17mm-13mm

N 90718301 - 22mm-22mm-22mm

No. 4 - T piece: __A_B___C

N 90668801 - 7.5mm-7.5mm-7.5mm

N 90668901 - 10mm-7.5mm-7.5mm

N 90669201 - 13mm-10mm-10mm

N 90669301 - 13mm-7.5mm-13mm

N 90669401 - 13mm-13mm-7.5mm

N 90669501 - 17mm-17mm-10mm

N 90669601 - 17mm-17mm-7.5mm

N 90669701 - 17mm-13mm-13mm

N 90893101 - 17mm-13mm-17mm

N 90680201 - 17mm-13mm-7.5mm

N 90680401 - 22mm-22mm-4.5mm

N 90680501 - 22mm-13mm-17mm

N 90680601 - 22mm-22mm-22mm

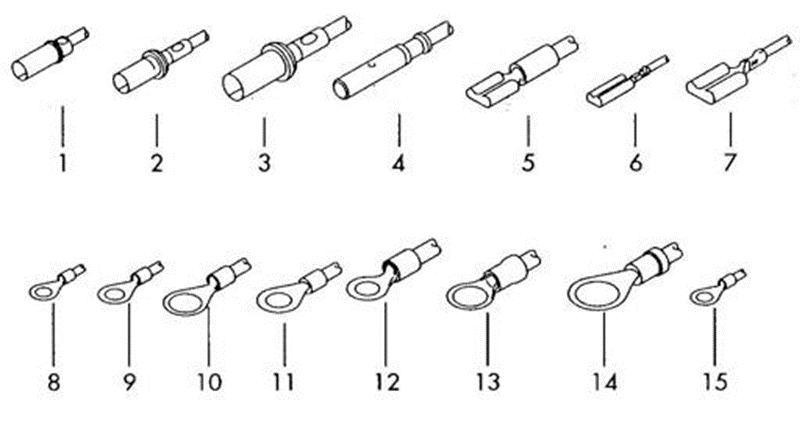

CABLE SHOES & SOLDER PINS

01 - 2D0972982D - connector with solder pin for contact housing

02 - 2D0972982E - connector with solder pin for contact housing

03 - 2D0972982F - connector with solder pin for contact housing

04 - 8A0972980A - connector with solder pin for contact housing for 1.0-2.0mm² wire

05 - 111971941 - 6.3mm flat connector for 2.5mm² wire

06 - N 0174835 - 2.8mm flat connector with retaining lug for 1.0mm² wire

07 - N 0174907 - 6.3mm flat connector with retaining lug for 1.0mm² wire

08 - 111971945C - cable shoe for 0.5-1.0mm² wire, hole diameter: 4mm

09 - 111971945D - cable shoe for 0.5-1.0mm² wire, hole diameter: 6mm

10 - 111971945E - cable shoe for 0.5-1.0mm² wire, hole diameter: 8mm

11 - 111971949B - cable shoe for 1.5-2.5mm² wire, hole diameter: 6mm

12 - 111971947B - cable shoe for 4.0-6.0mm² wire, hole diameter: 6mm

13 - 111971948 - cable shoe for 4.0-6.0mm² wire, hole diameter: 8mm

14 - 111971948A - cable shoe for 4.0-6.0mm² wire, hole diameter: 10mm

15 - 111971949A - cable shoe for 1.5-2.5mm² wire, hole diameter: 4mm

MOUSER ones

https://docs.google.com/spreadsheets/d/1ABr4i_IWGl3KxmSV6Q51_fn2w9AO6C8tdG6cdbPowdk/edit#gid=0

https://www.a4-freunde.com/showwiki.php?title=Pins+und+alles+was+dazu+gehoert https://forums.tdiclub.com/index.php?threads/official-te-connectivity-connectors-vw-repair-wire-listing-thread.400909/

Parts that the author found from eshops

:::info Formatting: \n OEM/OE; description --> order number

? - unknown order number

description - if the order number is not available

:::

:::tip Use CTRL + F to find desired number.

:::

N 10319002 / N 103 190 02 ; \n JPT Junior Power Timer Stift ; 2,8x0,8 Kontakt;  1,00²-2,50² VW

MQS Quadlock Kontakt Pin Female ; \n 0,50²-0,75²;  cable Ø 1,70mm - 1,90mm ; FAKRA  --> 963715

N 90764701 /  N 907 647 01; \n MQS Quadlock Kontakt Pin ; Female;, 0,25mm² - 0,35mm²;  cable Ø 1,20mm - 1,40mm --> 928999

MQS Quadlock Kontakt Pin Male; \n 0,50²-0,75²; FAKRA ; 0,50mm² - 0,75mm² ; cable Ø 1,70mm - 1,90mm --> 963716

N 90764801 / N 907 648 01; \n MQS Quadlock Kontakt Pin; Male;  0,25mm² - 0,35mm² ; cable  Ø 1,20mm - 1,40mm --> 928918

N 90335204 / N 903 352 04; \n JPT Kontakt Pin; Female ; 0,50mm²-1,00mm² ; cable Ø 1,40mm - 2,30mm --> 927771 or 927779

N 90335304 / N 903 353 04; \n JPT Kontakt Pin; Female ; 1,00mm²-2,50mm² ; cable Ø 2,10mm - 3,10mm  -->

927768 or 927777

N 10335801 / N 103 358 01; \n Mini ISO Kontakt; Female ; Micro Timer II;0,50²-1,00² ; cable  Ø 1,40mm - 2,10mm  --> ?

N 10336101 / N 103 361 01; \n Mini ISO Kontakt; Male;  Micro Timer II; 0,50²-1,00² ; cable  Ø 1,40mm - 2,10mm --> ?

N 01745706 / N 017 457 06; \n JPT Kontakt Pin; Flachstecker / Flat ; Male; 0,50mm²-1,00mm² ; cable  Ø 1,40mm - 2,30mm --> 964132 or 964141

MQS Quadlock Kontakt Pin; \n Female Isolated; ELA; 0,25²-0,35² ; cable Ø 0,90mm - 1,40mm --> 962885

N 10318901 / N 103 189 01; \n JPT Kontakt Pin; Male; 0,50mm²-1,00mm² ;  cable Ø 1,40mm - 2,10mm --> 964294 or 964293

MQS Quadlock Kontakt Pin ; \n Male Isolated; ELA; 0,25²-0,35² ; cable Ø 0,90mm - 1,40mm --> 962886 \n Seal 967067-X (Ø 3,45) or 963142-X (Ø 4,00)

N 10336003 / N 103 360 03; \n Micro Timer II ;Male; Isolated  ; 0,20²-0,50² ; VW AUDI ; cable      Ø 1,15mm - 1,60mm --> ?

N 10335701 / N 103 357 01; \n Micro Timer II MT2; Female ; Kontakt ; 0,20²-0,50²; VW AUDI ; 0,20mm - 0,50mm²;  cable Ø 1,20mm - 1,40mm --> ?

**N 10318902 / N 103 189 02  + VW 357 972 741, 357 972 741 A, 357 972 741 B VW 103 189 02 ; \n **JPT Kontakt; Male sealed; 0,50mm²-1,00mm²; cable Ø 1,40mm - 2,10mm --> 964300 or 964299 with Seal 963292, 963293, 963294

**N 90684402 / N 906 844 02 + VW 357 972 741 , 357 972 741 A , 357 972 741 B VW 906 844.02 ; \n **JPT Kontakt; Female Sealed; 0,50mm²-1,00mm² ; cable Ø 1,40mm - 2,70mm --> 964286 or 964285 with Seal 963292, 963293, 963294, 828905

N 90684401 / N 906 844 01; \n JPT Kontakt; Female; 0,50mm²-1,00mm² ; cable Ø 1,40mm - 2,10mm --> 964284

N 10318801 / N 103 188 01; \n 2,8x0,8 Flachstecker Timer / Flat Pin; 0,50mm²-1,00mm² ; Rastfeder ; cable Ø 1,40mm - 2,10mm  -->  964294 or 26671

N 10539820 / 10598202; \n 1,2x0,6 MCON Flachstecker/ Flat Pin; 0,50mm²-0,75mm²;  cable  Ø 1,40mm - 1,90mm --> 1718760-1 Seal 3B0 972 742 C 33-0475

N 10335701 / N 103 357 01; \n Micro Timer II; MT2; Female; Kontakt; 0,20²-0,50² ; cable Ø 1,20mm - 1,40mm --> ?

N 103190.02 / 103 190 02 / 103190; \n JPT Junior Power Timer; Stift / Flat Pin; 2,8x0,8 Kontakt; 1,00²-2,50²; cable Ø 2,20mm - 3,00mm --> OE: 14-0631 + Seal 08-0003 / 08-0112 / 08-0014

N 105114.01 / 105 114 01 / A0135457626 / A 013 545 76 26  - konfektioniert 000979151E, 000 979 151 E, 000979151; \n MCP 2,8 Kontakt Stecker Crimp; Female ; 0,50-1,00mm² ; cable  Ø 1,40mm - 2,10mm --> „Fremdartikel-Nr." : 14-0827, 1241388-1, 1241388-1, 33-1914-10, 33-1914-25, 33-1914-50

OE/OEM: 105112.01, 105 112 01, A0135458626, A 013 545 86 26 - OE/OEM: konfektioniert 000979134E, 000 979 134 E, 000979134; \n MCP 1,5 Kontakt Stecker Crimp ; Female ; 0,50-1,00mm² ; cable Ø: 1,40mm - 2,10mm --> „Fremdartikel-Nr.": 14-0633, 1241374-1, 1241375-1, 33-1916-025, 33-1916-050

N 10442601 / 104 426 01; \n 2,8 MCP Kontakt; Female Sealed; 0,20mm² - 0,35mm²;  cable Ø max. 1,40mm ; Series MCP HCPS --> ?

N 90488601 / 904 886 01; \n Kontakt Flachstecker / Flat Pin;  2,8x0,8, mit doppelter Rastfede,; 0,50mm² - 1,00mm² ; cable Ø 1,40mm - 2,10mm --> ?

N 90488501 /  904 885 01; \n 2,8x0,8 Flachstecker /Flat Pin ;  0,20mm²-0,50mm²; doppelte Rastfeder ; cable Ø 1,00mm - 1,60mm --> ?

Source: German Eshop Site Czech Eshop Site as main inspiration
